Fall Time: 22 ns
Rise Time: 7 ns
Technology: Si
Channel Mode: Enhancement
Configuration: Single
Mounting Style: SMD/SMT

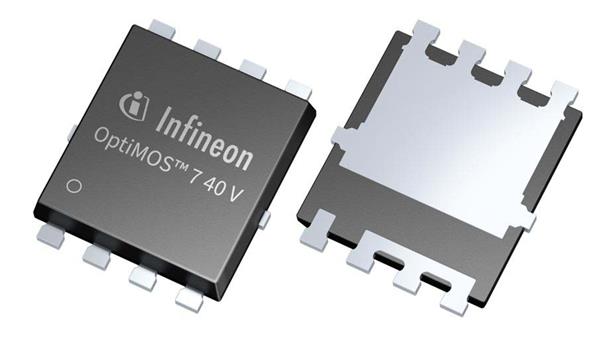

Transistor Type: OptiMOS Power MOSFET
Qg - Gate Charge: 79 nC
Number of Channels: 1 Channel
Transistor Polarity: N-Channel
Pd - Power Dissipation: 234 W
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Typical Turn-On Delay Time: 13 ns
Typical Turn-Off Delay Time: 70 ns
Id - Continuous Drain Current: 541 A
Maximum Operating Temperature: + 175 C
Minimum Operating Temperature: - 55 C
Forward Transconductance - Min: 320 S
Rds On - Drain-Source Resistance: 420 uOhms
Vds - Drain-Source Breakdown Voltage: 40 V
Vgs th - Gate-Source Threshold Voltage: 1.8 V
