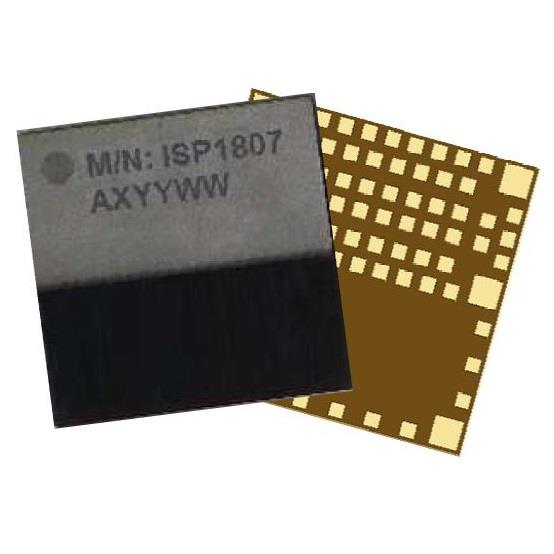

Insight SiP ISP1807-LR-R2 Bluetooth Modules ISP1807-LR BT5 Module NFC flash 1M ram 256K - Reel of 2000 units

Core: ARM Cortex M4

Range: 100 m

Width: 8 mm

Height: 1 mm

Length: 8 mm

Protocol: BLE, Bluetooth 5.0

Data Rate: 2 Mb/s

Frequency: 2.43 GHz

Dimensions: 8 mm x 8 mm x 1 mm

Memory Size: 256 kB, 1 MB

Sensitivity: - 95 dBm

Output Power: 8 dBm

Mounting Style: SMD/SMT

Frequency Range: 2.36 GHz to 2.5 GHz

Moisture Sensitive: Yes

Protocol - Sub GHz: NFC

Receiver Sensitivity: - 95 dBm

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Operating Supply Voltage: 1.7 V to 5.5 V

Supply Current Receiving: 5.4 mA

Supply Current Transmitting: 14.1 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
