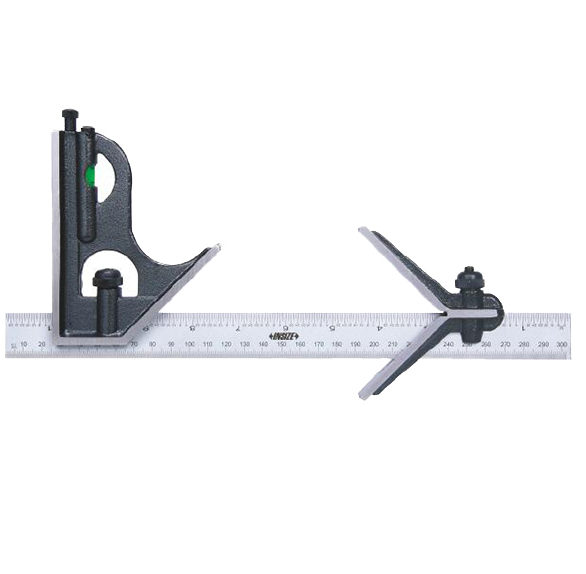

Remark: 3-piece set

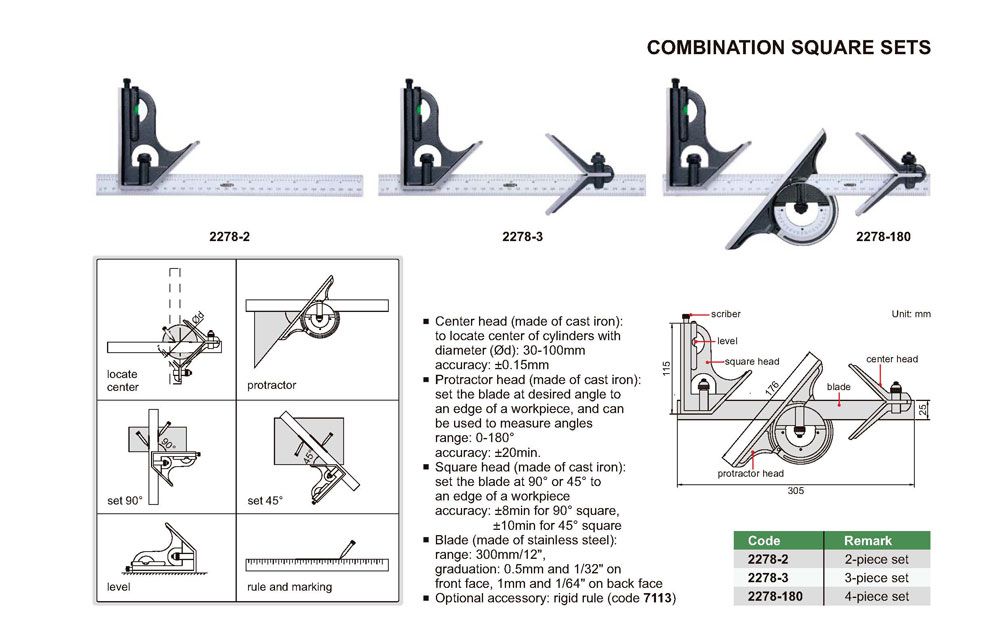

Center head (cast iron):
- Diameter(ϕd): 30-100mm
- Accuracy: ±0.15mm
Protractor head (cast iron)
- Measure angle range: 0-180°
- Accuracy: ±20min
Square head (cast iron)
- Set the blade at 90° or 45° to an edge of a workpiece
- Accuracy: ±8min for 90° square; ±10min for 45° square
Blade (stainless steel):
- Range: 300mm/12"
- Graduation: 0.5mm and 1/32" on front face, 1mm and 1/64" on back face
Optional accessory: rigid rule
