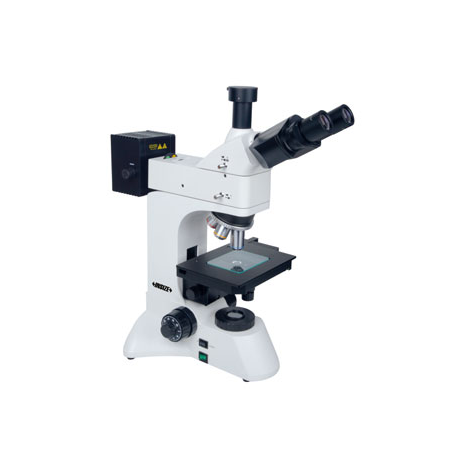

INSIZE 5102-M600 Metallurgical Microscope (50X~600X;bright field objectives)

Illumination: 6V/30W (transmitted and reflected)

Objective (infinite plan achromatic): bright field objectives: 5X; 10X; 40X; 60X

Working distance: 26.1mm; 20.2mm; 3.98mm; 3.18mm

Numerical aperture: 0.12; 0.25; 0.60; 0.70

Magnification: 50X~600X

Eyepiece (wide field): 10X (view field: ϕ22mm)

Stage:

-Double layer

-Size: 210x140mm

-Travel: 75x50mm

Pupil distance: 53~75mm

Diopter adjustment: ±5 diopter (one eyepiece)

Power supply: 220V, 50/60Hz

Dimension: 456x260x498mm

Weight: 11kg

Standard delivery:

-Main unit: 1pc

-Anti- dust cover: 1pc

-Filter (blue/frosted glass): 1pc

Optional accessory:

-Bright field objective

-Digital camera

-Camera adpater
