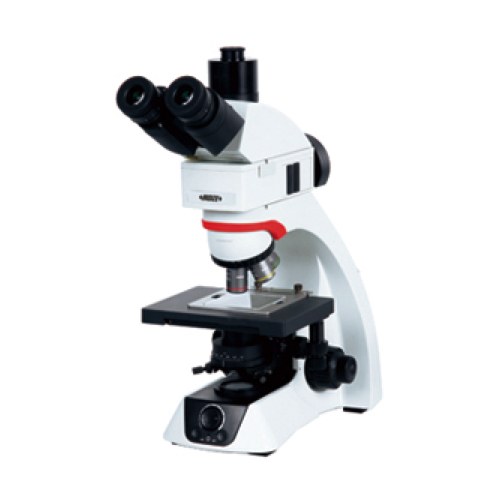

INSIZE 5113-M850 Metallurgical Microscope (10X; 50X - 500X)

Objective(infinite plan achromatic) / Numerical aperture / Working distance

5X / 0.15 / 16mm

10X / 0.30 / 9mm

20X / 0.45 / 3mm

50X / 0.80 / 3mm

Eyepiece: Large field 10X (view field: Ø23mm)

Objective (infinite plan achromatic): Bright field objectives

Optical magnification: 50X - 500X (up to 1000X with optional 100X objective)

Stage: X-Y double layer

Size: 200 × 150mm

Travel: 78 × 50mm

Condenser: Pre-centered condenser with diaphragm indicator scale markings NA 0.1 ~ 1.1

Diopter adjustment: ±8 diopter

Observation tube: 30° hinged trinocular observation tube, pupil distance adjustment range 45 - 78mm

Power supply: Power adapter

Dimension (W × D × H): 391 × 220 × 513mm

Weight: 18kg

Datasheet

STANDARD DELIVERY

Main unit: 1 pc

Anti-dust cover: 1 pc
