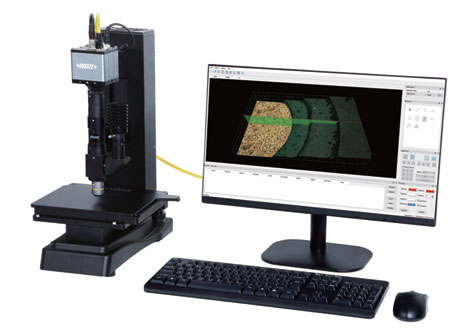

INSIZE 5323-D215 Large depth of field 3D measuring microscope

SPECIFICATION

Sensor: 1/1.2" CMOS

Pixel: 2M

Resolution: 1920X1080

Magnification (10X objective): 142~970X (on 21.5" monitor)

Z-axis measurement range: 30μm-6mm

View field (10X objective): 0.29×0.16 ~ 2.0×1.2mm

Working distance: 11mm

Frame rate: 30fps

Stage:

size: 200x180mm

travel: 200x180mm

Plane measuring accuracy: ±5μm

Profile measuring accuracy*: ±10μm

Output: HDMI/LAN

Power supply: power adapter

Dimension (LxWxH): 230×330×500mm

Weight: 12.7kg

* During 3D synthesis, the number of photos should be not less than 150 in order to achieve this accuracy

STANDARD DELIVERY

Main unit: 1 pc

10X objective: 1 pc

1X objective: 1 pc

Power adapter: 1 pc

Calibration plate: 1 pc

16G USB flash disk: 1 pc

■The Z-axis is driven by high precision stepping motor

■ Can be connected to display and computer at the same time

■Fast generation of large depth of field images

■ Plane measurement and profile height measurement
