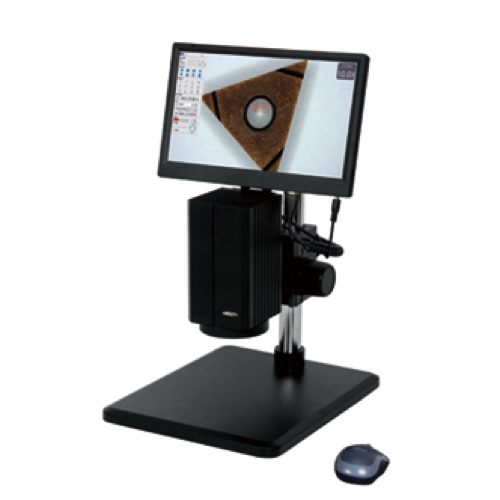

INSIZE 5325-VM100 Motorized Zoom Microscope (10~68.5X)

Sensor: 1/2" CMOS

Pixel: 2M

Resolution: 1920×1080

Magnification: 10~68.5X

Measuring accuracy: ±0.02mm

Max workpiece height: 135mm

Frame rate: 60fps

Output: USB/LAN/HDMI

Power supply: Power adapter

Dimension (L×W×H): 261×320×480mm

Weight: 5.1kg

MAGNIFICATION, FOCUS DISTANCE AND VIEW FIELD (on 11.6" LCD)

0.5X (optional)

Magnification: 5~34.2X

Focus distance: 180mm

View field: 7.4×4.2~53×31.2mm

1X (included)

Magnification: 10~68.5X

Focus distance: 87mm

View field: 3.7×2.1~26.5×15.6mm

STANDARD DELIVERY

Main unit: 1 pc

Glass calibration rule: 1 pc

Power adapter: 1 pc

Mouse: 1 pc

16G USB flash disk: 1 pc

White/black plate: 1 pc

Network cable: 1 pc

Shortcut keyboard: 1 pc
