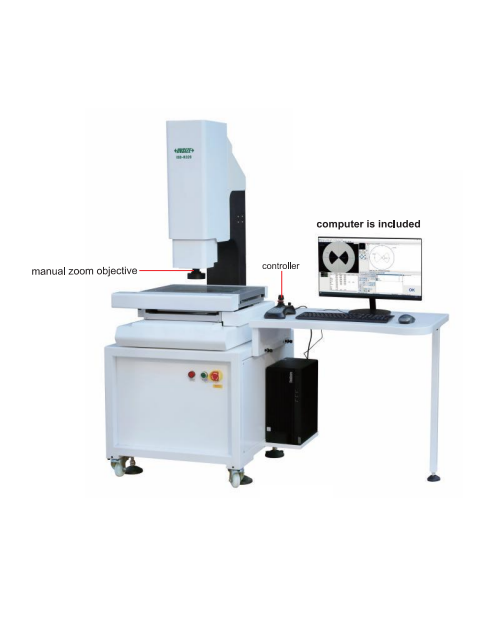

INSIZE ISD-R540 CNC Vision Measuring Systems (500x400x150mm, 0.7X~4.5X)

Measuring range (XxYxZ): 500x400x150mm

Stage size: 706x566mm

Glass stage size: 550x450mm

Resolution of X/Y/Z axis: 0.5µm

Accuracy of X/Y axis: ≤(3+L/200)µm (L is the measuring length in mm)

Repeatability of X/Y axis: 2µm

Objective: 0.7X~4.5X (zoom)

Working distance: 55mm

View field (diagonal length): 1.3~7.6mm

Magnification: 29X-143X (on 21.5" monitor)

Camera: 1/3" color CCD, 0.3M pixel

Illumination

contour: programmable segmented ring light

surface: adjustable LED light

Max. height of workpiece: 150mm

Max. weight of workpiece: 20kg

Operation system: Windows 10/11

Drive method: automatic

Power supply: 220V, 50/60Hz

Dimension (LxWxH): 800x1040x1780mm

Weight: 500kg
