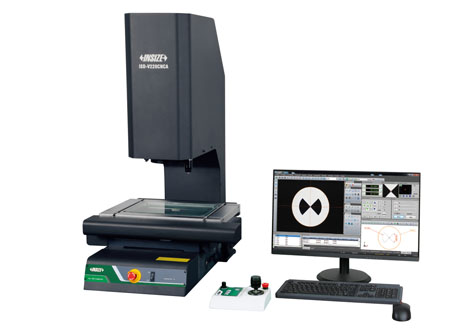

INSIZE ISD-V270CNCA CNC vision measuring systems (270×170×150mm)

SPECIFICATION

Code of manual zoom lens: ISD-V270CNCA

Measuring range (XxYxZ): 270×170×150mm

Stage size: 500x330mm

Glass stage size: 350x250mm

Resolution of X/Y/Z axis: 0.5μm

Accuracy of X/Y axis: ≤(2.5+L/100)μm (L is the measuring length in mm)

Repeatability of X/Y axis: 2μm

Objective: 0.7X-4.5X (zoom)

Working distance: 92mm

Magnification

33.0X-208.6X (with manual zoom lens, on 24" monitor)

31.9X-188.7X (with motorized zoom lens, on 24" monitor)

Camera: giga-bit network camera

Illumination

surface: coaxial light, programmable segmented ring light

contour: adjustable LED light

View field (diagonal length): 1.5-10.8mm

Max. height of workpiece: 150mm

Max. weight of workpiece: 30kg

Operation system: Windows 7/8/10

Drive method: automatic

Power supply: 220V, 50/60Hz

Dimension (L*W*H): 760×600x900mm

Weight: 168kg

STANDARD DELIVERY

Main unit: 1pc

Software: 1pc

Computer 24" display: 1pc

Len with coaxial light: 1pc

Controller: 1pc

Calibration glass chart: 1pc

Laser positioner: 1pc

Clay: 1pc

Anti-dust cover: 1pc
