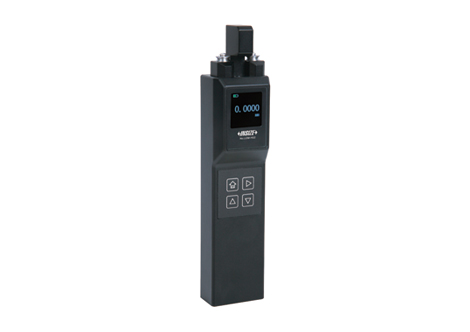

INSIZE LDM-H02 Handhold laser scan micrometer (0.02~2mm)

SPECIFICATION

Measuring range: 0.02~2mm

Resolution: 0.001mm/0.0001 mm/0.00001mm selectable

Accuracy (25*C): ±0.5μm

Repeatability (25*C): 0.3μm

Laser wavelength: 650nm

Measuring speed: 800times/s

Operation temperature: 0~50°C

Operation humidity: 35-85%RH without condensation

Power: Built-in 7.4V rechargeable battery

Weight: 495g

STANDARD DELIVERY

Main unit: 1pc

Inspectation gauge: 3pcs (0.10+/-0.001mm; 0.30+/-0.001mm; 0.80+/-0.001mm)

AC/DC adapter: 1pc

■ Measure the outside diameter of cables, pipes and wires

■ For transparent or non transparent workpieces

■ Unit: mm, inch, mil, um

■ Compact and portable, the reading can be displayed horizontally
