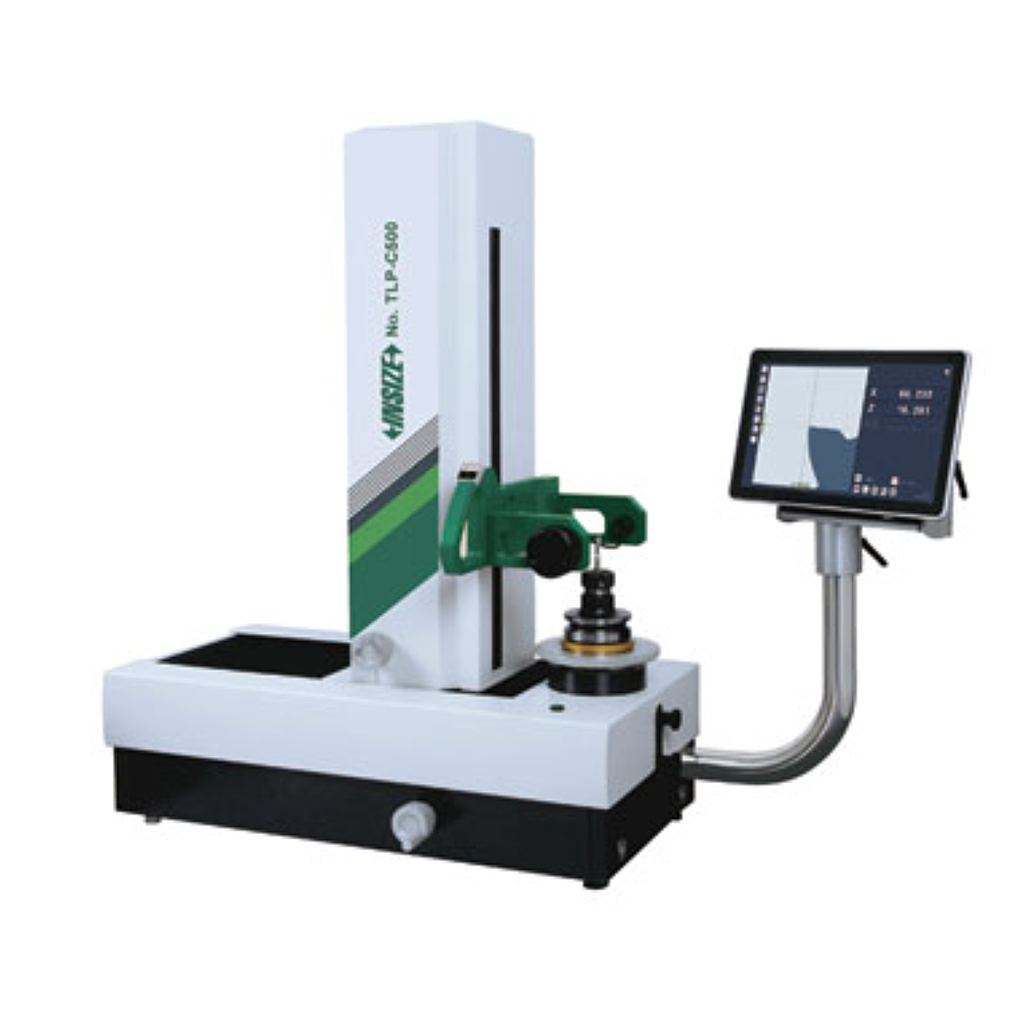

INSIZE TLP-C500 Tool Presetter
Manufacturer: INSIZE Model: TLP-C500 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Maximum tool diameter (X-axis): 400 mm
Maximum tool height (Z-axis): 500 mm
Repeatability X-axis: 2µm
Repeatability Z-axis: 2µm
Resolution of X/Z axis: 1µm
Radial runout of spindle: ≤2µm at 100mm, ≤5µm at 300 mm
Camera: color CCD, 1.3M pixel
Magnification: 26X
View field: 6.5x6.5 mm
Illumination: LED transmitted light source
Spindle: ISO/SK/BT50
Output: USB
Air pressure: 0.4-0.6 MPa
Environment requirement: temperature: 10-45°C, relative humidity: 30-75%
Power supply: 220V
Dimension (LxWxH): 860x590x1060mm
Weight: 120kg
