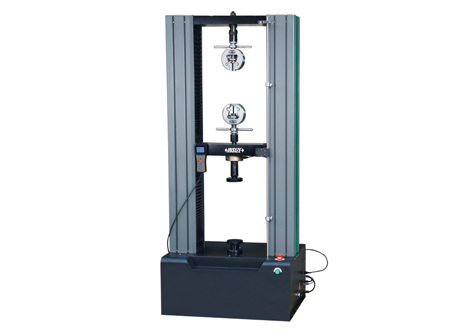

INSIZE UTM-E30 Electronic universal testing machine (30kN)
Manufacturer: INSIZE Model: UTM-E30 Price (exclude VAT) USD 12,754.21 Price (include VAT) USD 13,774.55 Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max. test force: 30kN
Accuracy class: 0.5 class
Test force measurement accuracy: ±0.5% of indicated value
Range of test force: 0.2% - 100%FS
Resolution of test force: 1/500000FS
Crossbeam displacement accuracy: ±0.5% of indicated value
Crossbeam displacement resolution: 0.025μm
Range of speed adjustment: 0.001-500mm/min
Accuracy of crossbeam speed:
±1% of the set value, (speed<0.5mm/min)
±0.2% of the set value, (speed≥0.5mm/min)
Range of force control speed: 0.005~5%FS/S
Accuracy of constant load force:
±2% of the set value, (speed<0.05%FS/s)
±0.5% of the set value, (speed≥0.05%FS/s)
Compression fixture: Ø100mm
Wedge tension fixture
flat jaw: 0~7mm
V-jaw: Ø4-Ø9mm
Effective test width: 440mm
Vertical test space: 970mm
Effective compression height: 700mm
Power supply: AC 220V, 50Hz, 0.4kW-kW
Dimension: 820x620x1880mm
Weight: 350kg
