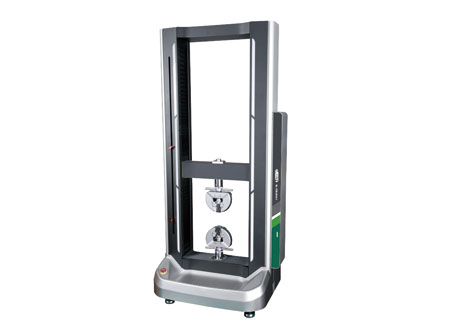

INSIZE UTM-X300 Electronic universal testing machines (professional type) (300kN)
Manufacturer: INSIZE Model: UTM-X300 Price (exclude VAT) USD 47,734.80 Price (include VAT) USD 51,553.58 Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Maximum test force: 300kN
Accuracy class: 0.5 class
Accuracy of test force: ±0.5% of indicated value
Range of test force: 0.2%~100%FS
Test force resolution: 0.5N
Crossbeam displacement accuracy: ±0.1% of indicated value
Crossbeam displacement resolution: 0.1µm
Velocity accuracy: ±0.1% of indicated value
Range of speed adjustment: 0.001~500mm/min
Effective test width: 600mm
Vertical test space:
standard model: 1450mm
heighten 250mm: 1700mm
heighten 500mm: _
Dimension WxDxH:
standard model: 1180×756×2440mm
heighten 250mm: 1180×756×2690mm
heighten 500mm: _
Weight:
standard model: 965kg
heighten 250mm: 1015kg
heighten 500mm: _
Power supply: AC380V, 3Ø, 50Hz, 6kW
Environment requirements: temp: 5~40 humidity level: 5~85%RH non-condensing no vibration
Standard Delivery
Main unit: 1pc
Control box: 1pc
Computer: 1pc
Software: 1pc
Printer: 1pc
■ UTM-X series electronic for universal testing machines are equipped with a variety of test software, can be for metal, ceramics, plastics, rubber and composite materials and other related mechanical properties of the test and research. It can also be used for research and quality control of mechanical properties of various products such as mechanical parts, electronic parts, food packaging materials, chemical fibres, films, new energy batteries and so on.
■ The rigidity of the host, loading speed and load, deformation measurement accuracy, data reliability, adoption rate and closed-loop control rate are excellent.
■ Electronic universal testing machines are usually equipped with tensile fixtures, compression fixtures and clamp blocks. In addition, there are dozens of application fixtures for metal materials, resin/plastic materials, soft plastics/rubber/films/adhesives, etc., composite materials, electronic materials and components industry applications, new energy industry applications and so on.
