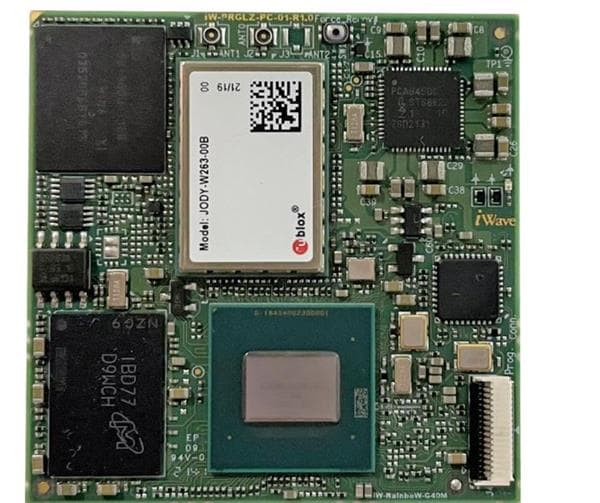

iWave Systems iW-G40M-OLPQ-4L004G-E016G-BIA System-On-Modules - SOM i.MX 8M Plus Quad OSM SOM with 4GB LPDDR4, 16GB eMMC, 802.11ac Wi-Fi + BLE 5.0
Manufacturer: iWave Systems Model: iW-G40M-OLPQ-4L004G-E016G-BIA - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Chipsets: Marvell 88W8987
Frequency: 2 GHz
Dimensions: 45 mm x 45 mm x 1.2 mm
Form Factor: 45 mm x 45 mm
Installed RAM: 4 GB
Interface Type: CAN FD, Bluetooth, GPIO, HDMI, I2C, LVDS, MIPI-DSI, PCIe, RGMII, SAI/I2S, SDIO, SPI, UART, USB 2.0, USB 3.0, WiFi
Processor Type: i.MX 8M Plus Quad
Number of Cores: 5
Processor Brand: NXP
Maximum RAM Capacity: 8 GB
On-Board Storage Size: 16 GB
On-Board Storage Type: eMMC
Operating Supply Voltage: 4.75 V to 5.25 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
