Color: Black
Pitch: 2.5 mm (0.098 in)
Gender: Receptacle (Female)
Material: Polybutylene Terephthalate (PBT)
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Number of Rows: 2 Row
Wire Gauge Max: 16 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Outside Diameter: 1.6 mm to 2.2 mm
Wire Gauge Range: 22 AWG to 16 AWG
Termination Style: Crimp
Number of Positions: 36 Position

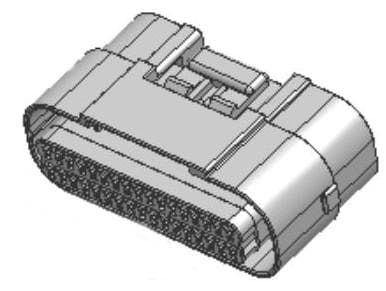

Description/Function: Compact type low-profiled waterproof connector
Insulation Resistance: 100 MOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
