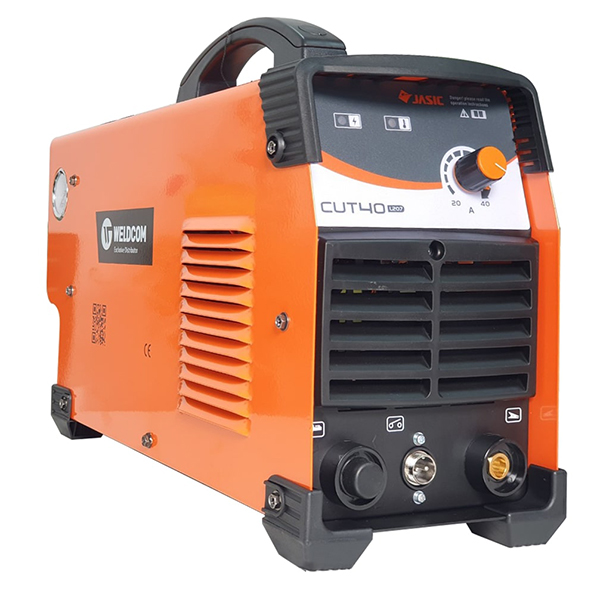

JASIC CUT40 L207 Plasma Cutting Machine
Manufacturer: JASIC Model: CUT40 L207 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Input Voltage (V/Hz): AC220V±15%, 50/60Hz
Rated Input Current (A): 24.3
Rated Power (KVA): 5.6
No-load Voltage (V): 220
Cutting Current Range (A): 20-40
Duty Cycle at Imax 25°C (%): 60
Duty Cycle at 100% (25°C) (A): 31
Efficiency (%): 85
Power Factor (cosφ): 0.93
Insulation Class: F
Protection Class: IP21S
Arc Ignition Method: Contact
Compressed Air (for Carbon Steel) (Mpa): 0.4-0.6Mpa, 7800 l/h
Compressed Air (for Stainless Steel) (Mpa): 0.4-0.6Mpa, 1200 l/h
Effective Cutting Thickness (mm): ≤6
