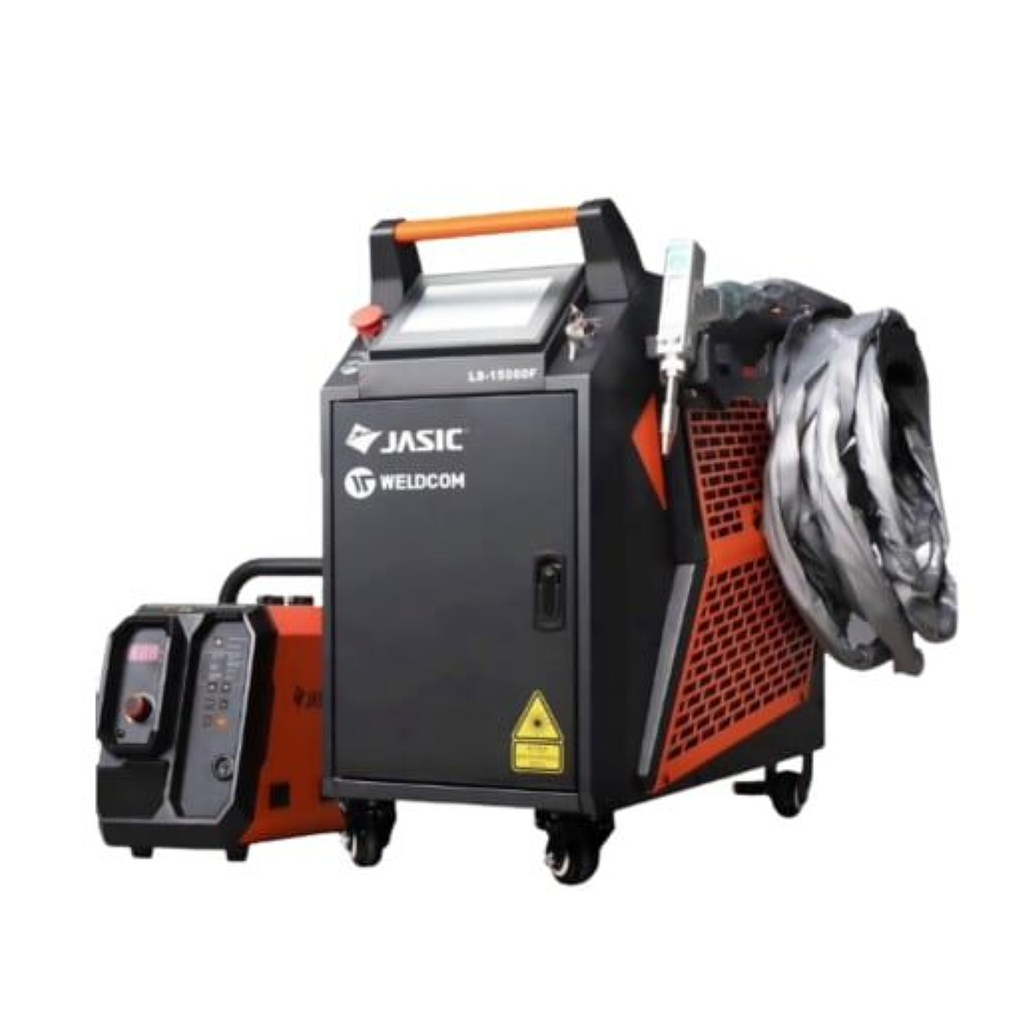

JASIC LS-20000F Laser Welding Machine (1080 ± 10nm, 0.5-6mm)
Manufacturer: JASIC Model: LS-20000F - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power supply: AC220V±10%/50HZ
Power: 2000w
Total power consumption: 7.8Kw
Laser wavelength: 1080 ± 10nm
Welding laser beam width: 0-6mm
Welding material thickness: 0.5-6mm
Welding wire diameter: 0.8/1.0/1.2/1.6
Maximum width of welding gap: ≤ Diameter of welding wire
Recommended cutting thickness: 5mm
Cleaning speed: 50mm/s
Cleaning width: 0-120
Machine weight: 92 kg
Machine dimensions: 773*410*737mm
Wire feeder weight: 11.5 kg
Wire feeder dimensions: 628*240*340mm
Coolant tank capacity: 8L
Protective gas: Argon/Nitogen
Operating temperature: -10°C- 40°C
Standard accessories:
Laser source: 2000W – JASIC
Cooler
Controller, Welding gun: SUP23T
Wire feeder: WF-22L
