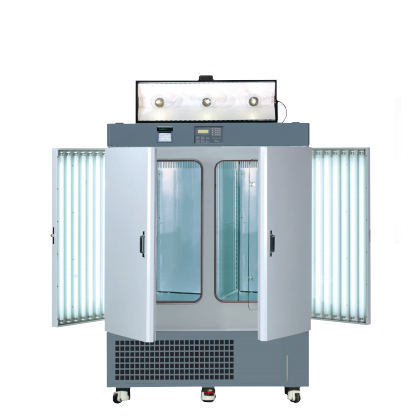

JEIOTECH GC-1000TLH Plant Growth Chambers (1000L, 5~50℃, 50~90%, CO2) | EMIN.ASIA

JEIOTECH GC-1000TLH Plant Growth Chambers (1000L, 5~50℃, 50~90%, CO2)

Name: JEIOTECH GC-1000TLH Plant Growth Chambers (1000L, 5~50℃, 50~90%, CO2)
Brand: JEIOtech
Price: 24876 USD
Availability: OutOfStock

ManufacturerJEIOtech

ModelGC-1000TLH

P/NAAHA1032K

USD 24,876.00

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Chamber Volume (L / cu ft)    1000 lit
Controller    PID control (LCD Type)
Temperature: 5~50
            Fluctuation 1) (±℃ / oF) at 40℃ / 60%RH 0.1
            Variation 1) (±℃ / oF) at 40℃ / 60%RH    0.8
Humidity: 50~90 %
             :Fluctuation (±%RH) at 60%RH / 40℃    3
Refrigeration: System Air - cooled, R-404A, Capacity (W) 1300
Material: Ni-Cr Wire Heater / SUS Tube Heater , Polyurethane
Interface Port    Basically RS-232C, [RS-485 : optional]
Dimension (W×D×H): Internal (mm / inch)   1200×800×1080 mm
                                : External (mm / inch) 1410×1070×2150 mm
Net Weight (kg / lbs)    550 kg
AC230V, 1ph, 50Hz , 30 A Cat.No.    AAHA1032K

Datasheet

Operating Features

+5℃ to 50℃ (lamp off) / 10℃ to 50℃. (lamp on)
Max. to 35,000Lux for GC-1000.
Max. to 20,000Lux for GC-300 Models.
40 to 80% RH for GC-300TLH. (at 20~35℃)
50 to 90% RH for GC-1000TLH. (at 20~35℃)
300 to 5,000ppm CO2 control. (optional)
Microprocessor PID control / Auto-tuning / Calibration.
Digital timer: 1 min to 99 hr 59 min.
10 step programmable temperature, humidity, and illumination profiles and repeat the steps up to 999 cycles.(self-testing)

Constructional Features

High quality #304 grade stainless steel interior and dirt repellent powder coated exterior surface.
User-friendly door system.
- Silicone packing for keep inner chamber perfectly.
- External door with magnetic sealing for dual airtight.
- Smoothly open to minimize damage of samples.
Wide inner tempered glass door provides a full view of the samples.
- A tempered window provides a clear view of your specimen during testing.
Powerful air circulator for smooth airflow.
- Air flow system very efficient for plant growth.
- One propeller for GC-1000TLH / tangent blower and a sirocco fan for GC-300 Models.
High frequency electronic ballast lamps.
- Reinforced Blue and Red spectrums lighting system for plant photosynthesis.
- Economical with stable light and long life span.
- Easy-to change bulbs.
Heat rise restraint.
- Unique construction to minimize the heat from rising due to the luminous light source.
- Designed to exhaust the heated air through the upper holes.
(only for GC-1000TLH)
Easy cleaning of condenser air-filter.
- To prevent deterioration of refrigeration system and keep filter dust free by periodically cleaning the filter.
Casters for easy mobility when installing or moving environ-mental testing chamber.
Electronic humidity sensor is fast acting and easy to calibrate.
Dual type water level sensor.
Adjustable water tank positions. (only for GC-300TLH)
Removable shelving and rounded inner chamber corners for easy cleaning.

Safety Features

Leakage breaker for power supply.
Over current protection.
Over heat protection with alarm.
Door opening alarm.
Low and empty water level alarm. (TLH Models only)

Model		GC-300TL		GC-300TLH		GC-1000TLH
Chamber Volume (L / cu ft)		300 / 10.6				1000 / 35.3
Control System		Microprocessor PID controller
Temperature	Range (℃ / ℉)	5 to 50 / 41 to 122 - Lamp off
		10 to 50 / 50 to 122 - Lamp on
		20 to 50 / 68 to 122 - with humidity
	Fluctuation (±℃ / ℉) at 25℃	0.1 / 0.18 - without humidity
	Variation (±℃ / ℉) at 25℃	0.8 / 1.43 - without humidity
Illumination	Range (Lux)	0 to 20,000				0 to 35,000
	Control (steps)	10				11
	Lamp	Fl lamp (32W×18EA)				FL lamp (32W×16EA)
	Lamp	Fl lamp (32W×18EA)				Metal lamp (400W×3EA)
Humidity	Range (RH %)	-		40 to 80 at 20 to 35℃		50 to 90 at 20 to 35℃
	Range (RH %)	-		70 to 90 at 36 to 50℃		60 to 90 at 36 to 50℃
	Fluctuation (±RH)at 60% RH	-		3
Co² (optional)	Range (ppm)	300 to 5,000
Co² (optional)	Sensor	NDIR CO2 sensor
Refrigerant (HP)		1/2				3/4
Temp. Heater Power (W)		750×2EA				1,500×2EA
Humid. Heater Power (W)		-		1300		1500
Dimension (W×D×H)	Interior (mm / inch)	510×540×1100 / 20×21.3×43.3				1200×800×1080 / 47.2×31.5×42.5
	Exterior (mm / inch)	700×805×1900 / 27.6×30.1×74.8				1410×1070×2150 / 55.5×42.1×84.7
	Net Weight (kg / lbs)	250 / 551.2				550 / 1212.5
Electrical Requirements (230V)		60Hz/12.5A	50Hz/12.5A	60Hz/16A	50Hz/16A	60Hz/30A	50Hz / 30A
Cat. No.		AAHA1011K	AAHA1012K	AAHA1021K	AAHA1022K	AAHA1031K	AAHA1032K
