Jeiotech IS-971RF Incubated Shakers (Floor Models) | EMIN.ASIA

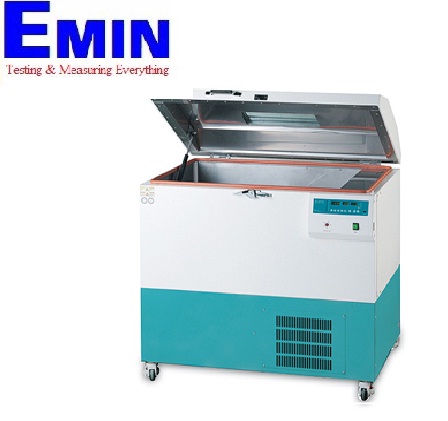

Jeiotech IS-971RF Incubated Shakers (Floor Models)

Name: Jeiotech IS-971RF Incubated Shakers (Floor Models)
Brand: JEIOtech

ManufacturerJEIOtech(View more products from this manufacturer)

ModelIS-971RF

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Model: IS-971
Manufacturers: Jeiotech
Origin: Korea
warranty: 12 months

Temperature Range (℃ / ℉) Amb. 5~60 /
Fluctuation at 37℃ (±℃ / ℉)0.2 / 0.36
Variation at 37℃ (±℃ / ℉) 0.15 / 0.27
Shaking System Speed 10~300 rpm
Dimension (W×D×H) Internal (mm / inch) 894×634×480 /
Overall (mm / inch) 1,132×810×1,045 /
Net Weight (kg / lbs) 180
Electrical Requirements (230V, 50 / 60Hz) 9.3A
Cat. No. AAH22041K

Inside of IS Models

Shaking Features

Dual shaking modes: orbital or reciprocating mode selectable.
Speed range: 10 to 300 rpm.
Programmable shaking control.
- Timer range: 10 sec to 999 hr 59 min 59 sec.
- Forward & Backward, Pause: 10 sec to 59 min 59 sec.
Selectable orbit diameter or stroke length: 30, 40, 50, 60, 70mm.

Operating Features

Temperature control:
+5°C above ambient to 60°C (for IS-971)
4°C to 60°C (for IS-971R)
-15°C below ambient to 60°C (for IS-971RF)
Microprocessor PID control.
Simple calibration and auto-tuning functions.
Digital timer with Delayed ON/OFF function: 1 min to 99 hr 59 min.
High temperature limit setting and open door alarm.
Convenient preset function for 3 most commonly used temperature settings.
Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
Adjustable 3-step fan speed with defrosting time and period control.
Intuitive control panel with bright LED display and touchsensitive keypad for temperature (0.1℃ resolution), speed, and shaking motion control.
RS-232 interface.

Constructional Features

Maintenance-free and durable BLDC motor.
High-velocity fan ensuring uniform temperature distribution and rapid thermal recovery.
Convenient sample monitoring thanks to the transparent top viewing window minimizing the need to open the lid. (except for IS - 971RF)
Gas spring lid supports providing soft closing, smooth motion, and stopping.
Environment-friendly CFC-free refrigerant. (for IS-971R and IS-971RF)
Built-in casters for easy transport.
Lockable lid for added safety.
Adjustable 5-brightness (maximum 12,000 lux) illumination lamp. (optional for IS-971RF only)

Model		IS-971	IS-971R		IS-971RF
Temperature	Range (℃ / ^oF)	Amb. +5 to 60 / Amb. +9 to 140	4 to 60 / +40 to 140		Amb. -15 to 60 / Amb. -27 to 140
	Fluctuation¹⁾ at 37℃ (±℃ / ^oF)	0.2 / 0.36
	Variation¹⁾ at 37℃ (±℃ / ^oF)	0.8 / 1.44
	Refrigerator	-	1 / 3 LBP (AC 120V)		1 / 3 LBP (AC 120V)
	Refrigerator	-	1 / 6 HBP (AC 230V)		1 / 4 HBP (AC 230V)
Shaking System	Motion Type	Orbital or Reciprocating motion selectable
	Speed Range (RPM)	10 to 300
	Timer	Run time: 10 sec to 999 hr 59 min 59 sec Forward & Backward, Pause: 10 sec to 59 min 59 sec
	Amplitude Size (mm / inch, dia.)	30, 40, 50, 60, 70 / 1.2, 1.6, 2, 2.4, 2.8 Available - Standard 30 / 1.2
	Recip Stroke Length (mm / inch)	30, 40, 50, 60, 70 / 1.2, 1.6, 2, 2.4, 2.8 Available - Standard 30 / 1.2
Dimension	Volume (L / cu ft)	270 / 9.5
	Platform (W×D) (mm / inch)	755×481 / 29.7×18.9
	Internal (W×D×H) (mm / inch)	894×634×480 / 35.2×25×18.9
	Overall (W×D×H) (mm / inch)	1,132×810×1,045 / 44.6×31.9×41.1			1,132×810×1,075 / 44.6×31.9×42.3
	Net Weight (Kg / lbs)	180 / 396.8	195 / 429.9		210 / 462.9
Electrical Requirements (230V)		50 / 60Hz, 5.2A	60Hz, 7.3A	50Hz, 7.3A	60Hz, 9.3A	50Hz, 9.3A
Cat. No.		AAH23306K	AAH23321K	AAH23322K	AAH23351K	AAH23352K
Electrical Requirements (120V)		60Hz, 11.2A	60Hz, 13.8A		60Hz, 17A
Cat. No.		AAH23336U	AAH23346U		AAH23356U

1) Technical data according to DIN 12880.
※Certification only for the IS-971, IS-971R.
