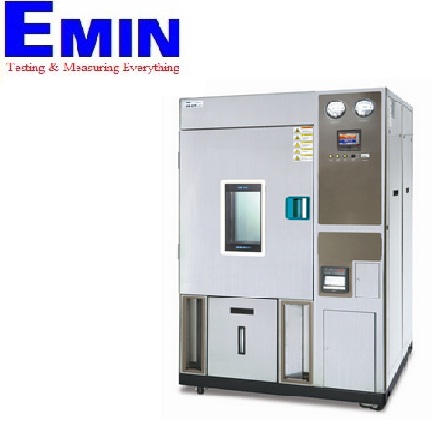

Model: TH-CR-270
Manufacture: Jeiotech
Origin: Korea
Warranty: 12 months
Chamber Volume (L / cu ft) 270 / 9.5
Controller PID control (LCD Type)
Temperature: -35~100℃
Fluctuation 1) (±℃ / oF) at 40℃ / 60%RH 0.3
Variation 1) (±℃ / oF) at 40℃ / 60%RH 0.3
Humidity: 20 to 85 %
:Fluctuation (±%RH) at 60%RH / 40℃ 3
: Variation 2) (±%RH) at 60%RH / 40℃ 3
Time: 60min (20℃ → 85℃)/ 65min (20℃ → -5℃)
Refrigeration: System Air - cooled, R-404A, Capacity (W) 1500
Material: Ni-Cr Wire Heater / SUS Tube Heater , Polyurethane
Interface Port Basically RS-232C, [RS-485 : optional]
Dimension (W×D×H): Internal (mm / inch) 600×700×648 / 23.6×27.6×25.4
: External (mm / inch) 1180×1120×1935 / 46.5×44.1×76.2
Net Weight (kg / lbs) 400±10 / 881.8±22
| Description | TH-CR-270 |
|---|---|
| Programmable Pattern Capacity | 120 |
| Pattern Repeat Time | 999 |
| Max. Segments per a Pattern | 100 |
| Available Max. Segments* | 1200 |
| Programmable Process Time per a Segment | 0 to 99 hr 59 min |
| Model | TH-CR-270 | ||
|---|---|---|---|
| Chamber Volume (L / cu ft) | 270 / 9.5 | ||
| Controller | Programmable, Touch screen type controller (5.7" Color monitor)Local controller (Fixed - command control) | ||
| Temperature | Range (℃ / ℉) | -35 to 100 / -31 to 212 without humidity | |
| Fluctuation 1) (±℃ / ℉) at 40℃ / 60%RH |
0.5 / 0.9 | ||
| Variation 1) (±℃ / ℉) at 40℃ / 60%RH |
0.5 / 0.9 | ||
| Time | Heating - without Humidity (Min.) |
60 From -35℃ to 120℃ (-31℉ to 248℉) | |
| Cooling - without Humidity (Min.) |
65 From 20℃ to -35℃ (68℉ to -31℉) | ||
| Humidity | Range (%RH) | 50 to 90 at 20℃ (68℉) | |
| 40 to 90 at 30℃ (86℉) | |||
| 30 to 90 at 40 to 85℃ (104 to185℉) | |||
| Fluctuation 1) (±%RH) | 3 | ||
| Variation 1) (±%RH) at 60%RH |
3 | ||
| Cleanliness | Class 100 (ISO 14644-1) | ||
| Refrigeration | System | Mechanical single stage refrigerator system (air-cooled condenser) | |
| Refrigerant | R-404A | ||
| Capacity (W) | 1500 | ||
| Cooler | Plate fin cooler | ||
| Heater | Material | Ni-Cr Wire Heater / SUS sheath Heater | |
| Drying Bulb (W) | 2000 | ||
| Humidity Bulb (W) | 2000 | ||
| Sensor | Temperature | Pt 100 | |
| Humidity | Electronic sensor - Free of drying a wet pack and good reaction time | ||
| Material | Interior | Stainless steel #304 | |
| Exterior | Stainless steel #304(Base & Control panels are made of Stainless steel with powder coating) | ||
| Insulation | Polyurethane | ||
| Door | Glass wool | ||
| *Silicon Free (optional) | EPDM for door packing, chamber sealing and tubePoly Urethane for DI water inlet & drainage | ||
| Air Flow | Sirocco fan | ||
| Water Supply | Capacity | 15L (0.53cu ft) - Cartridge type | |
| Water Quality | pH6.2 to 7.2 / Electrical conductivity 20㎲ /cm to below | ||
| Dimension (W×D×H) |
Interior (mm / inch) | 600×700×648 / 23.6×27.6×25.4 | |
| Exterior (mm / inch) | 1180×1120×1935 / 46.5×44.1×76.2 | ||
| Viewing Windows (mm / inch) |
200×330 / 7.9×13 | ||
| Net Weight (kg / lbs) | 400±10 / 881.8±22 | ||
| Cable Port | Basically one hole provided / Ø 50mm (2")Optionally max. two holes available / Ø 50 or 80mm (2 or 3.2") | ||
| Interface Port | Basically RS-232C [RS-485 [Maximum 9 Units Control] - optional] | ||
| Electrical Requirements (230V, 1ph) | 60Hz / 29A | 50Hz / 29A | |
| Cat. No. | AAH83011K | AAH83012K | |
| Electrical Requirements (380V, 3ph) | 50Hz / 9.6A | ||
| Cat. No. | AAH83018K | ||
