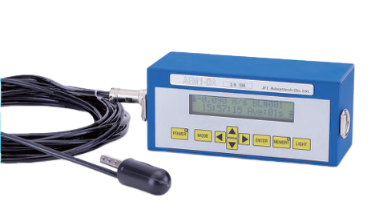

JFE AEM1-DA Handheld 1-D electro-magnetic current meter (0 ~ 5m s-1)
Manufacturer: JFE Model: AEM1-DA - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Sensor Specifications
Principle: Electromagnetic induction
Measuring direction: 1-D
Measuring range: 0 to 5m s-1
Resolution: 0.002m s-1
Accuracy: ± 0.005m s-1 or ± 2%(0 to 0.5m s-1)
Minimum measured depth: 3cm
Dimensions: Φ30mm×77mm
Cable length: 10m (Maximum 50m extension possible)
Depth rating: 30m depth equivalent
Display Area Specifications
Display: LCD, 20 characters, 2 lines
Displayed information: Velocity (m s-1), time, Block No.
Average time: Selectable from 1, 5, 10, 20, 40, 60 s
Data capacity: 2MB, recordable up to 255 blocks
Logged information: Block number, measured time, velocity, average time
External output: RS-232C output
1.Memory data transfer
2.Real-time data transfer
Power: Size C dry alkaline battery (Qty 4)
(For approx. 20 hours of use)
Dimensions: W225mm×H90mm×D100mm
Weight: Approx. 1.1kg
Material: ABS resin
Waterproof level: IPX4 class equivalent
