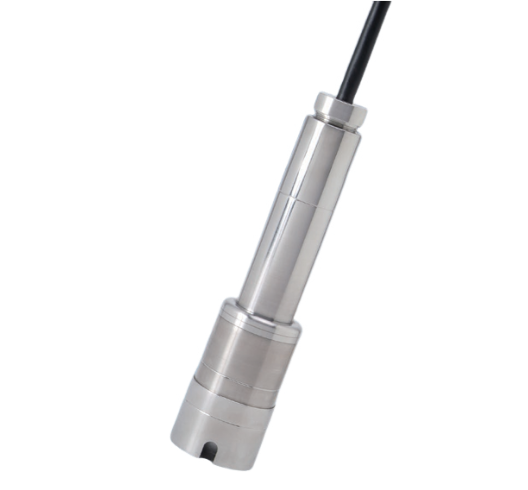

JFE SL-710C Submerged Level Detectors For Chemicals, Seawater (0 - 0.8m ~ 0 - 12m)

Measuring range: Range selectable from 0 - 0.8m to 0 - 12m

Accuracy: ±0.3% of span (±0.5% in the case of 0 - 0.8m)

Temperature characteristic: ±0.03%/°C of span (±0.05%/°C in the case of 0 - 0.8m)

Operating temperature range:

Detector: -5 to 50 °C (no freezing allowed)

Junction box: -5 to 60°C

(Guaranteed Indicater operating range: 0 to 50°C)

Output signal:

4 to 20mADC (2-wire type)

Allowable load resistance: 390Ω

(at power supply voltage 24V)

Allowable overload

12m when maximum measurement value is more than 0.8m and up to 3m

45m when maximum measurement value is more than 3m and up to 12m

Lightning protection: 10 kV (lightning protection circuits built in power supply and output sections)

Material Detector: Substantially Hastelloy® C-22®

Junction box: SMC resin

Hollow cable

Outer diameter: φ12 mm

Jacket: polyethylene sheath

Weight Detector: approx. 2.3kg

Junction box: approx. 0.9 kg

Power source: DC16.2 to 30V
