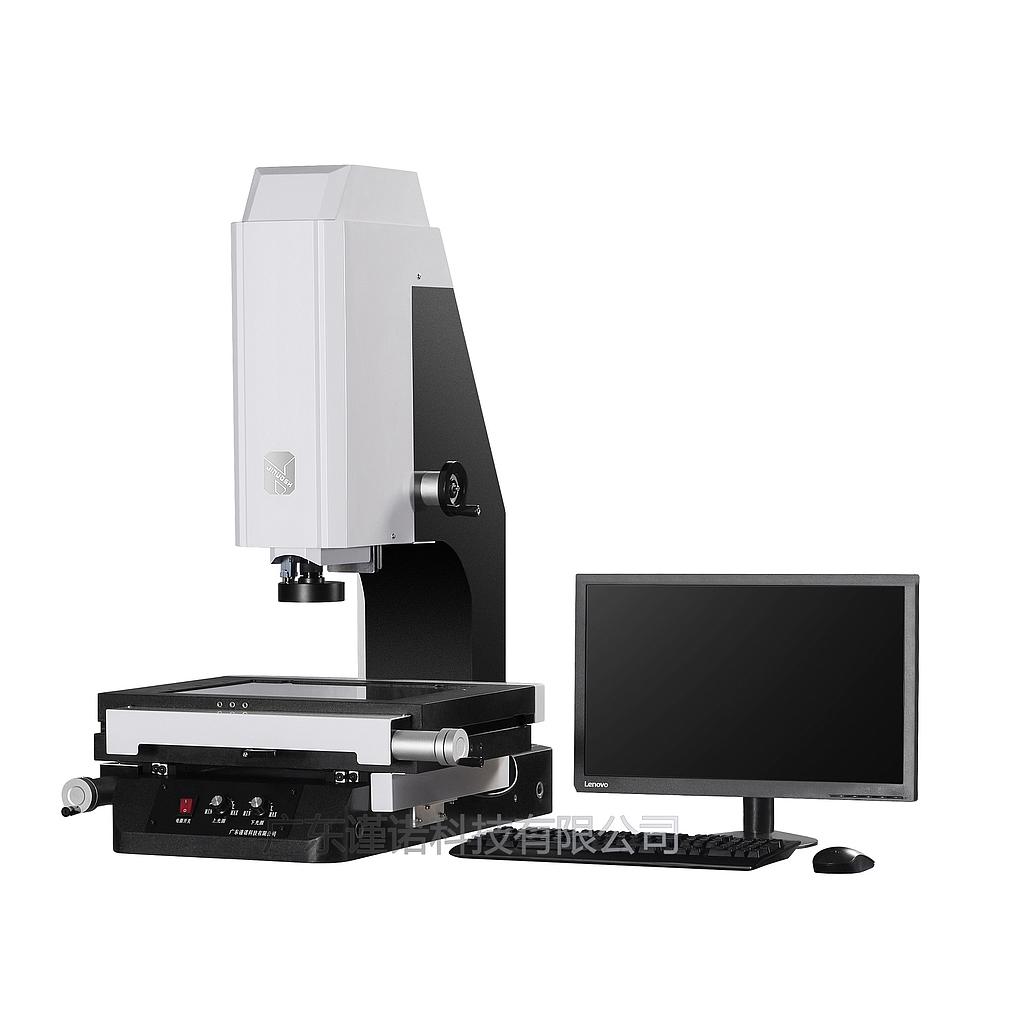

Marble table size (mm): 550*420
Glass table size (mm): 430*330
Movement stroke (mm): X:400mm Y:300mm
Focusing stroke (mm) (Z axis): 200mm
Measurement and aiming system:
High resolution camera (CCD)
Continuous zoom objective magnification: 0.7-4.5X
Working distance: 90mm
Video magnification: 20-230X
Display resolution: 0.0005mm
Precision Image 2D Measurement Software
Indication error: X.Y ≤ (3 + L/200) um (L is the measured length unit: mm)
Lighting system: The ring surface light source and the transmission light source are LEDs, and the brightness is adjustable.
Dimensions (mm) (length × width × height): 700*900*1100
Instrument weight (kg): 210kg
Glass table bearing: 20kg
Instrument power: 220V（AC) 50HZ
