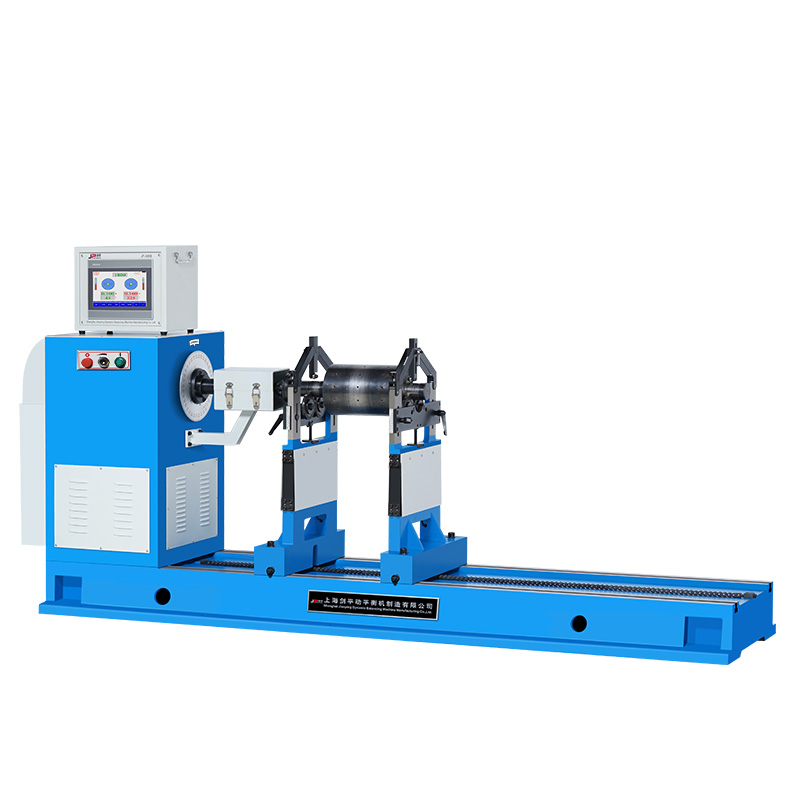

Applicable to Small workpieces
Mass Scope of Workpiece(kg): 160
Max Diameter of Workpiece(mm): Φ1000
Distance Between Two Support Bearings(mm): Min 60
Journal Diameter Scope of Workpiece(mm): Φ15~75
Max Distance between Driving Flange and Right Bearing Support (mm): 1500
Rotational Speed of the Main Axis(r/min): 600,109
Motor Power (kw): 3
Torque of Universal Joint Shaft(N·m): 60
Length of Bed (mm): 2500
Min Achievable Residual Unbalance Amount(emar)≤0.5g· mm/kg
