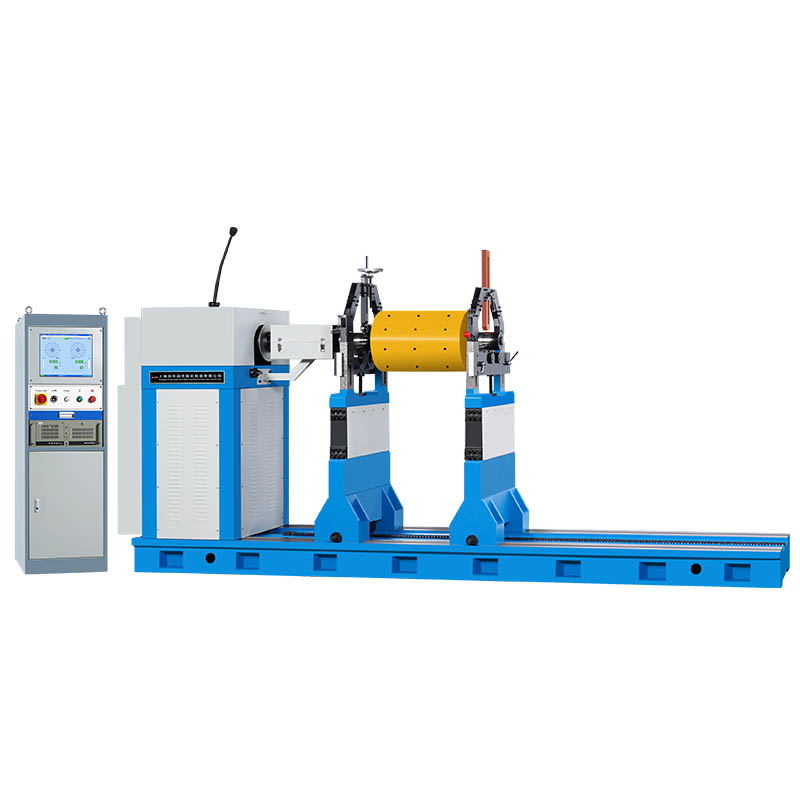

Applicable to medium workpieces
Mass Scope of Workpiece(kg): 2000
Max Diameter of Workpiece(mm): Φ1800
Distance Between Two Support Bearings(mm): Min 60
Journal Diameter Scope of Workpiece(mm): Φ25~120
Max Distance between Driving Flange and Right Bearing Support (mm): 1900
Rotational Speed of the Main Axis(r/min): 485,818
Motor Power (kw): 7.5(1)
Torque of Universal Joint Shaft(N·m): 300
Length of Bed (mm): 3000
Min Achievable Residual Unbalance Amount(emar): ≤0.5g· mm/kg
