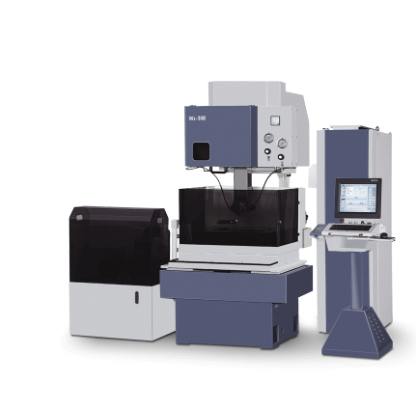

JSEDM Wi-30E Wire cut EDM (Ø 0.1~0.3 mm)
Manufacturer: JSEDM Model: Wi-30E Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Max. Workpiece Size L x W x H: 760 x 520 x 295 mm
Work Table Size: 640 x 500 mm
Max. Working Load: 500 kgs
X / Y / Z Axis Travel: 400 / 300 / 300 mm
U / V Axis Travel: 100 / 100 mm
Wire Diameter Range: Ø 0.1~0.3 mm
Max. Taper Angle /Workpiece Thickness: ± 22.5 °/ 100mm
Max. Wire Load: 10 kgs
Water Tank Capacity: 270 L
Net Weight: 1950 kgs
Machine Layout W x D x H: 2300 x 2200 x 2150 mm
Standard Accessories
Automatic Vertical Alignment Jig: 1 Set
Power Feed Contact: 2 Pcs
Filter: 2 Pcs
Clamping Tool: 1 Set
Wire Guide ( Ø 0.25 mm): 1 Set
Brass Wire ( Ø 0.25 mm / 5kg): 1 Roll
Ionic Exchange Resin (5L / 10L)
Tool Box: 1 Set
X, Y axes linear scale are included in Wi-640S & Wi-1065SA
Wi-1065SA contains A.W.T System
Optional Accessories
Wire Guide ( Ø 0.1 ~ 0.2 mm)
22.5° Nozzle
3R/EROWA Clamping Tool
Parallel Bar
Water Chiller
Power Regulator
X, Y Axes Linear Scale
Auto Wire Threading System
Auto Wire Cutting System
CAD/CAM Software
PCD Professional Electric Circuit
6 Axes Or Above Control
Wire Speed Meter
Wire Tension Meter
Water Resistance Meter
