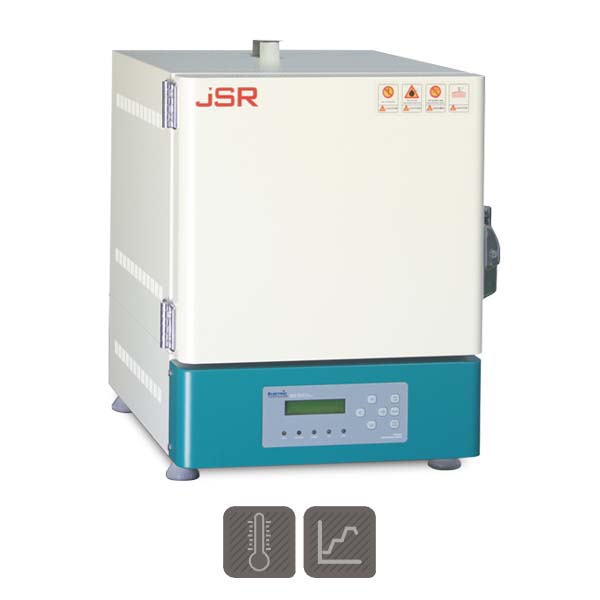

JSR JSMF-120T Electric Muffle Furnace (1,000°C; 200 x 300 x 200 mm; 3.3 kW)

Chamber Volume (Capacity): 12.0 Liters

Inner Dims. (W x D x H): 200 x 300 x 200 mm

Outer Dims. (W x D x H): 525 x 565 x 690 mm

No. of Ventilation damper: 1 EA

Heating Element: KANTHAL A-1 heating element

Temp. Range Maximum: +1,000℃

General operating: +800℃

Accuracy: ±5.0℃ at +500℃

Uniformity: ±5.0℃ at +500℃

Heat up time to +800℃: 30 min.

Control:

Programmable PID control

3 Pattern Memory

9 ramps and 9 dwells segments

Sensor: CA(K)-Type Sensor

Safety: Over-Temperature Cut-Off, Over Current Cut-Off

Material Body: Epoxy Powder Coated Steel, 1.0 mm thickness

Material Chamber: Ceramic Fiber

Electrical Requirement: 220 ± 10% VAC, 50/60Hz, 1-Phase

Heater Capacity: 3.3 kW

Power Rating: 15.2 amps

Plug Configuration: 30 AMP PLUG
