Order code: 705010/18-000-36/000,000,000
Basic type extension: 2 relays (N/O contact)
Version: With factory settings
Option slot 1: Not used
Option slot 2: Not used
Option slot 3: Not used
Voltage supply: DC 24 V +25/-20 %
DNV GL approval: Without approval
DIN approval: Without approval
Extra codes: Without extra code

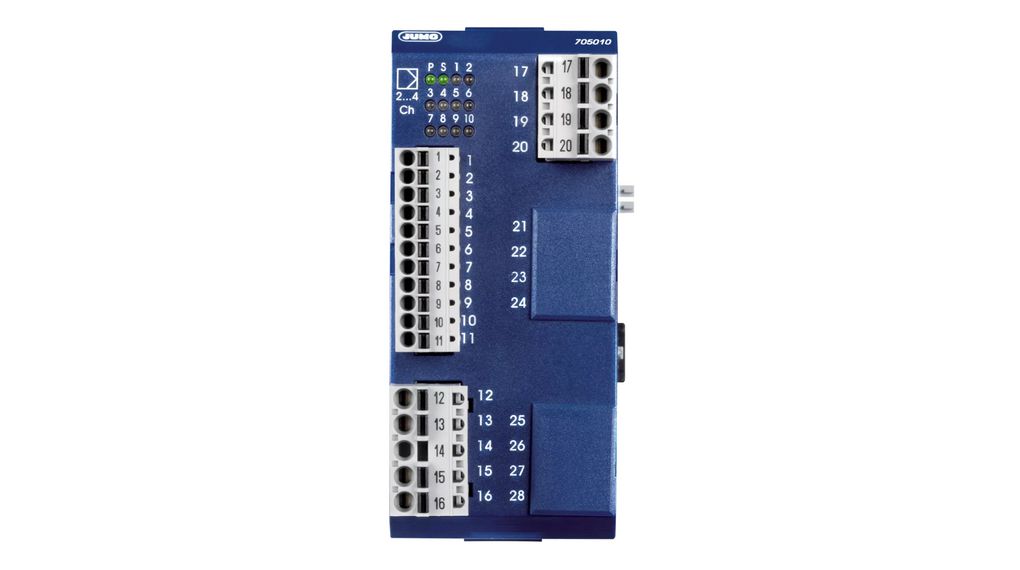

The multichannel controller module supports up to four PID controller channels (cascadable). In the standard version, two high-quality universal analog inputs for thermocouples, RTD temperature probes, resistance transmitters, resistance/potentiometers, and standard signals are available. Two digital inputs (DC 0/24 V) and two digital outputs as a relay with N/O contact (AC 230 V / 3 A) or as a logic output (DC 0/15 V) are also available as part of the standard version. Due to the three option slots (option 1, 2, and 3), the module can be extended up to four universal analog inputs, eight digital inputs, three analog outputs, or eight digital outputs
Datasheet
