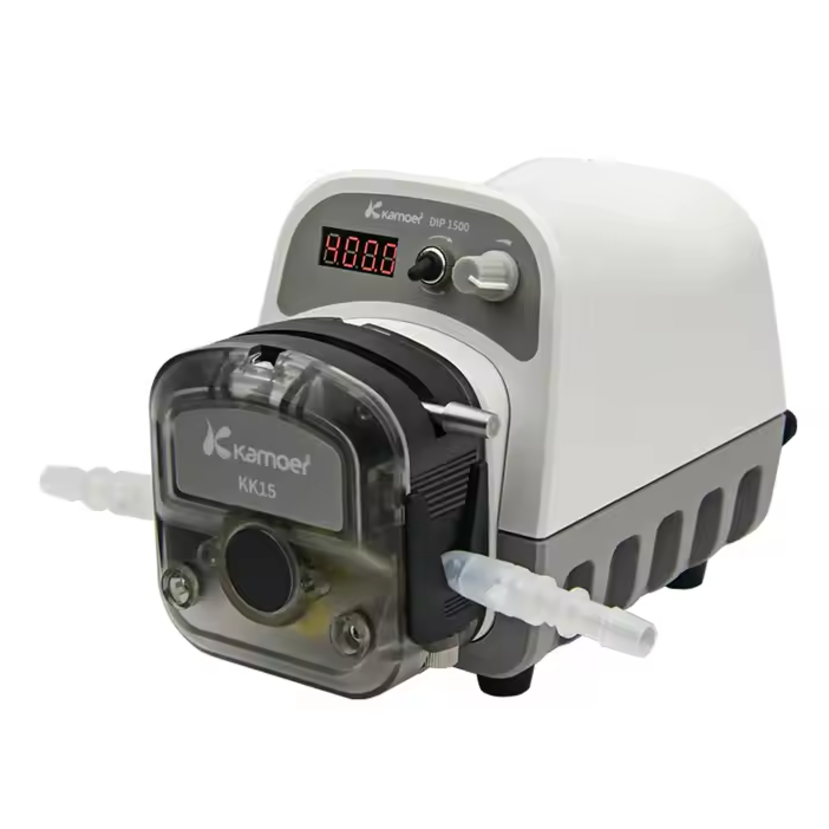

Kamoer DIP1500 Intelligent peristaltic pump (1500 ml/min in max)

Power supply: DC24V 2A power adapter

Power: <50W

Motor type: Stepper motor

Working environment: Temperature 0～60℃, relative humidity <80%RH

Total weight: About 1.7Kg (including pump head)

Reference noise: ≤65dB (the horizontal distance between the product and the noise meter is 0.5 meters)

Range of rotation: 0.1-400 rpm

Speed adjustment resolution: 0.1 rpm

Flow range: ≤1500 ml/min

Display method: LED 4-digit digital tube

Control method: Rotary encoder, foot switch, external analog (0-5V, 0-10V or 4-20mA), 485 communication control

Operating mode: Speed Mode and Flow Mode

Way of working: Fully automatic cycle, semi-automatic cycle, manual

Support function: Start and stop, reversing, speed regulation, calibration, suck back, parameter memory, etc.

Model code: S183

Pump tube material: Silicone tube

ID x OD (mm): 7.9 × 11.1

Number of rotors: 3
