Direct access to our certified experts

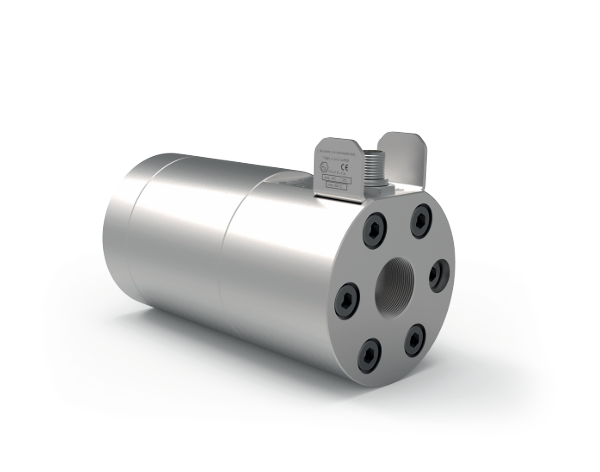

Application: Dosage control (High Resolution)
Process Medium:
Resin, lubricants, waxes
Abrasive, less lubricating
Medium/high viscosity
Attributes:
Stainless steel body
Tungsten carbide sleeve bearing
Bigger tolerances
Technical Data – Sizes
Standard measurement range (l/min): 1 to 100
Linearity error standard measurement range: ±0.5 % o.r. ≥ 30 cSt ; ±0.25 % o.r. ≥ 100 cSt
Resolution approx. (lmp/l): 16,000
max. Frequency approx. (Hz): 27,000
max. Pressure (bar/psi): 150 [2,175]
Weight (kg): 12
Technical Data – General
Measuring Accuracy: Up to ±0.1 %
Repeatability: ±0.05 % (under the same conditions)
Materials
Housing: as per DIN 1.4305 [AISI 303]
Gears: as per DIN 1.4122
Bearing: Tungsten carbide sleeve bearing
Bolts: ISO 4762
Thread: BSPP
Signal Resolution: 2x resolution
Sensor Options: f
Seals: FKM
Medium Temperature: -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)

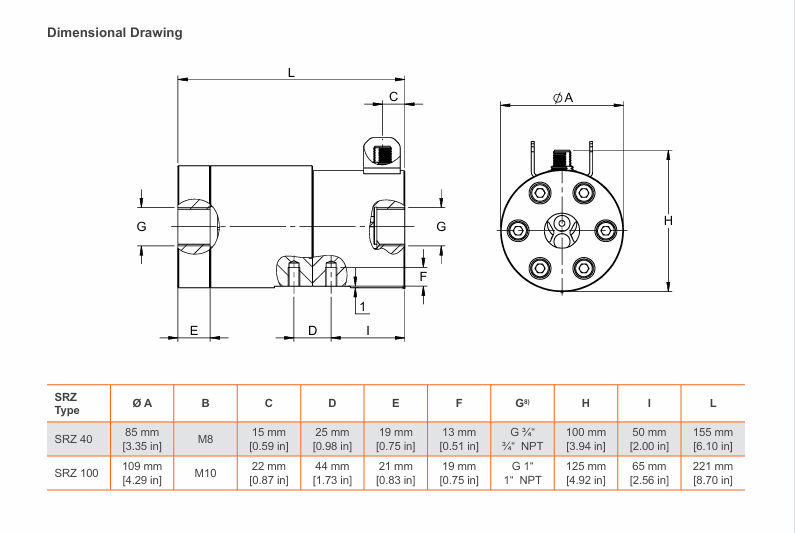

Dimensions: See dimensional drawing (In details)
See datasheet for choosing suitable configurations!
