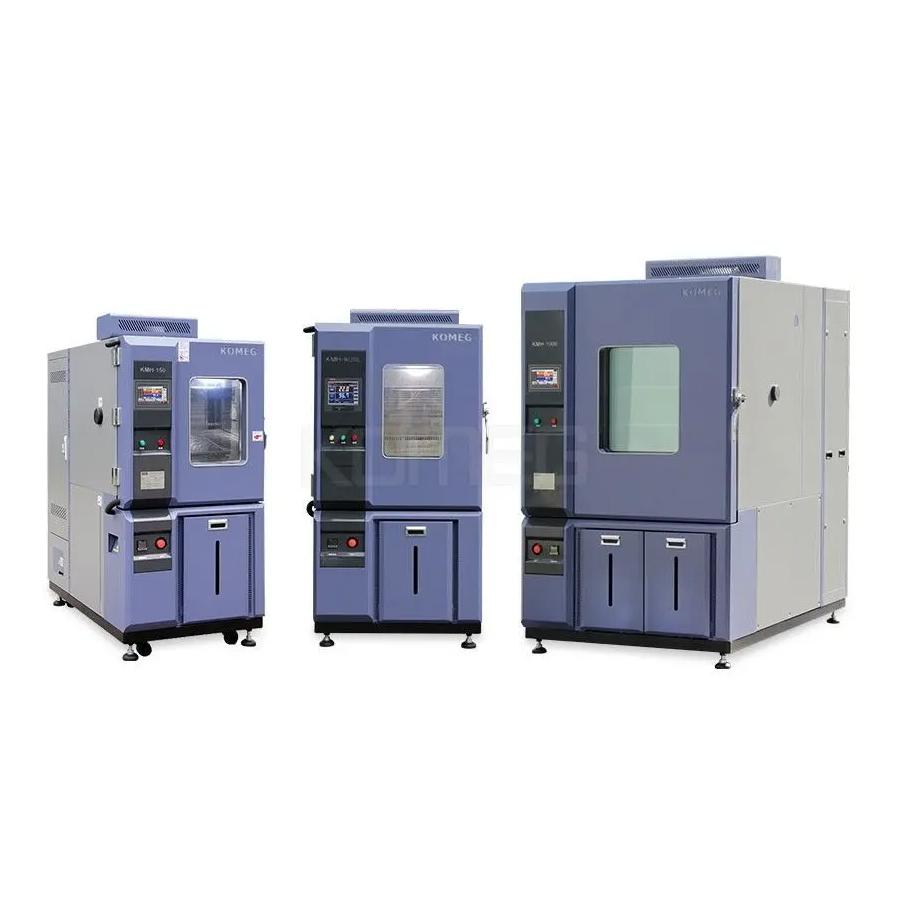

KOMEG KMT-150S High And Low Temperature Test Chamber (-70ºC~+150ºC)

Temp. range: -70ºC~+150ºC

Interior size (WxHxD): 600x600x460mm

Exterior size (WxHxD): 880x1730x1400mm

Power: 9.5kW

Weight: 300kg

Heat up time: -70ºC~+100ºC, within 60 min

Pull down time: +20ºC~-70ºC, within 80 min

Temp. constancy: ±0.5ºC

Temp. uniformity: ±2.0ºC

Standard accessories: Sightwindow*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m

Safety device (standard):

No fuse breaker, over pressure, over heat and over current protection for compressor

Over temp. protect, over load protect of blower, dry heat protection

Control System: Balanced Temperature & Humidity Control System

Refrigeration system:

Air Cooled

Hermetic compressor, Single stage refrigeration system

CFC-Free refrigerant (HFC-507/HFC-23)

Controller:

Panel:7-inch LCD Touch panel, Chinese or English display selectable

Operation model: Program or fix point running

Memory capacity: 120programs,1200steps,

All repeat 999 cycles, part repeat 99 cycles

Interior material: Stainless Steel Plate (SUS 304)

Exterior material: Baked Painting Steel Or Stainless steel (SUS304)

Insulation material: Rigid polyurethane Foam and Glass Fiber Wool

Ambient Temp.: +5ºC~+35ºC

Wiring method: AC 380±10%50Hz, 3 phase 4 wires +Ground Wires
