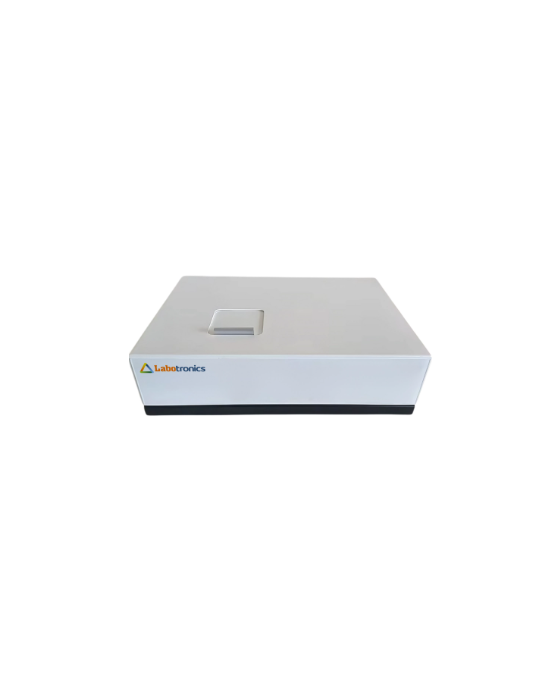

Labotronics LB-10OCA Infrared Oil Content Analyzer (0.001 ~2000 mg/L)

Measurement Range: 0.001 to 2000 mg/L (4 cm cuvette)

Detection Limit: ˂ 0.12 mg/L (direct measurement) ˂ 0.0012 mg/L (oil in water)

Measurable Concentration: ≤ 640000 mg/L (dilution)

Accuracy: ± 0.5% (

Repeatability: RSD ≤ 1%

Linear Range: R > 0.999

Wave Number Range: 3400 to 2400 cm⁻¹

Wave Number Accuracy: ± 2 cm⁻¹

Wave Number Repeatability: ± 2 cm⁻¹

Absorbance Range: 0.0000 to 2.000 AU

Baseline Drift: Absorbance < 0.001 AU/60 min

Analysis Time: Full Spectrum: 40 seconds Non-dispersive: 2 seconds

Cuvette Size: 1 to 5 cm

Temperature Range: 5°C to 35°C

Relative Humidity: 20% to 80% (no condensation)

Magnetic Interference: None

Power Supply: 220 V / 50 Hz

Dimensions: 540 × 360 × 150 mm

Weight: 15 kg
