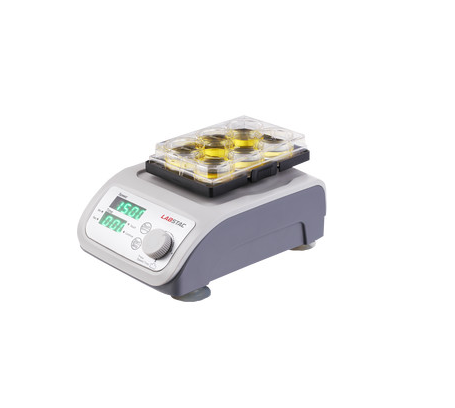

Labstac MV132 Vortex Mixer

Speed Range: 200-3000 rpm/min，stepless speed regulating

Orbital Diameter: 4.5mm

Motion: circumferential

Motor rating Input [W]: 20

Motor rating output [W]: 15

Maximum Load Capacity: 1 kg

Operation: Continuous/ touch operation

Timing Range: 1s-999 min

Overall Dimension: 210×150×69 mm

Protection Class: IP21

Speed setting and showing: 0-3000 rpm，Real-time digital showing for Speed and time

Driving: induction and variable frequency motor (without beltwork)

Weight: 4 kg

Standard Configuration: V1.1/Standard gasket

Power Supply: 100~240 V

Optional Accessories:

Accessory Code Name Description

MX1054 Standard gasket Use for setting tube which the diameter no more than 65mm smaller container, Speed range: 0/200-3000rpm

MX1055 ELISA Plate fixture Use for ,ELISA Plate and square adapter, Speed range: 0/200-1500rpm

MX1056 Flasks fixture Together with flasks gaskets, Speed range: 0/200-3000rpm

MX1057 100-240V adapter

MX1058 Flasks gasket fixture

MX1059 Centrifuge Tube Adapter Together with ELISA Plate fixture,30 jacks, Hole Diameter 10mm

MX1060 Centrifuge Tube Adapter Together with ELISA Plate fixture,16 jacks, Hole Diameter 12mm

MX1061 Centrifuge Tube Adapter Together with ELISA Plate fixture,12 jacks , Hole Diameter 16mm
