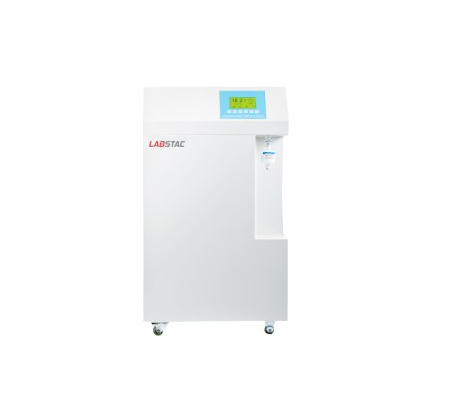

Labstac WU243 Low TOC Medium Ultrapure Water System

Water Inlet: Tap water: TDS<200 ppm (Extra pretreatment filter is recommended, if TDS>200 ppm)

Temperature: 5-45°C

Pressure: 1.0-4.0 Kgf/cm²

Flow Procedure**: PF+AC+RO+AC+UV+DI+TF

Ion rejection rate: 96%-99% (New RO membrane)

Organic rejection rate: >99%,when MW>200 Dalton

Particles and bacteria rejection rate: >99%

Bacteria: <0.1 cfu/ml

Output(25°C)****: 94 L/hrs

Pure water outlet: RO water and Ultrapure water

Water Quality Monitor: -

DimensionLxWxH: 640×540×1110 mm

Weight: 70 kg

Standard configuration: Main body (Including 1 set of cartridges)+ 2 built-in15 liters tank +accessory bag

Power Consumption (W): 120 W

Power Supply: AC110-220 V, 50/60 Hz

Note: *The feed water quality will influence the pure water´s quality and cartridges´ life-span.

**PF:polypropylene spun fiber, AC:active carbon, RO:reverse osmosis, DI:ion exchange, UV:ultraviolet,

UF:ultrafiltration, TF:terminal microfiltration.

***Value of number will be influenced by temperature and feed water quality.

****All the specifications are tested under the situation:feed water´s TDS=200ppm, 25°C, 50psi and 15% recovery rate.

Particle(>0.2µm): <1/ml

Resistivity(25°C): 18.2 MΩ.cm

TOC***: <3 ppb

Heavy metal ion: <0.1 ppb
