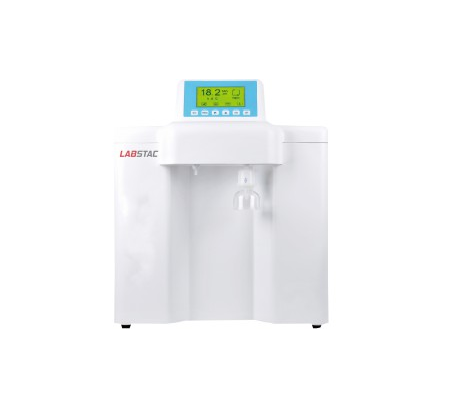

Labstac WU514 Synthesizing Ultrapure Water System

Water Inlet: Tap water: TDS<200 ppm (Extra pretreatment filter is recommended if TDS>200 ppm)

Temperature: 5-45°C

Pressure: 1.0-4.0 Kgf/cm²

Bacteria: <0.1 cfu/ml

Output(25°C)****: 10 L/hrs

Pure water outlet: 2:Electro Deionization water, ultrapure water

DimensionLxWxH: 500×360×540 mm

Weight: 30 kg

Standard configuration: Main body (Including 1 set of cartridges) + 20 liters tank+accessory bag

Power Consumption (W): 120 W

Power Supply: AC110-220 V, 50/60 Hz

Note: *The feed water quality will influence the pure water´s quality and cartridges´ life-span.

**PF:polypropylene spun fiber, KDF:kinetic degradation fluxion, AC:active carbon, RO:reverse osmosis,

SF:softener, EDI: electro deionization, UV:ultraviolet, DI:ion exchange, UF:ultrafiltration, TF:terminal microfiltration.

***Value of number will be influenced by temperature and feed water quality.

****All the specifications are tested under the situation:feed water´s TDS=200ppm, 25°C, 50psi and 15% recovery rate.

Heavy Metal Ion: <0.1 ppb

TOC***: <30 ppb

Resistivity (25°C): 18.2 MΩ.cm

Particle (>0.1µm): <1/ml

Flow procedure**: PF+KDF+AC+RO+SF+EDI+UV+DI+UF+TF

Resistivity***: >5 MΩ.cm

Silicon rejection rate: >99.9%

Endotoxin: <0.001 EU/ml

RNases: <0.01 ng/ml

DNases: <4 pg/µl
