Shaker Model: VG300/50
Frequency(Hz): 2-3000
Max Exiting Force(kg.f): 600
Max. Displacement (mm p-p): 51
Max. Acceleration(g): 100
Max. Velocity(cm/s): 200
Payload(kg): 200
Armature Mass(kg): 6
Armature Diameter(mm): φ200
Vibration Generator Weight(kg): 920
Shaker Dimension L*W*H(mm): 800*600*710
Power Amplifier: Amp6k
Cooling Method: Forced Air Cooling
Power Amplifier Weight(kg): 320
Power Amplifier Dimension L*W*H(MM): 800*550*1250
Utility Requirements: 3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW): 20

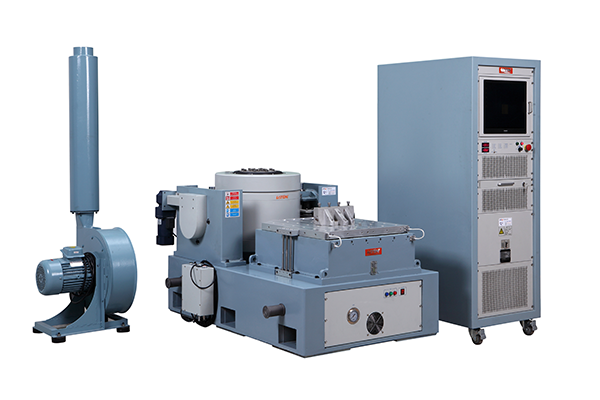

*Product image is for illustrative purposes only
Applications of Dynamic Shakers:
Automotive parts and systems – qualification testing
Electronic assembly, computer equipment testing
Avionics and military hardware testing
Satellite component testing
Product and package testing
General stress screening
