Laird External Antennas CFSA35606P-30NF Passive Antenna OMNI,LOW PIM,30CM,NF 350-6000M

Gain: 4.5 dBi, 4.4 dBi, 3.7 dBi, 4 dBi, 4.2 dBi, 4.6 dBi, 5.6 dBi, 5.4 dBi, 4.1 dBi, 5 dBi, 5.7 dBi, 6.8 dBi, 7.3 dBi

VSWR: 1.9, 1.7, 1.7, 1.5, 1.3, 1.5, 1.3, 1.4, 1.4, 1.4, 1.5, 1.4, 1.7

Style: Panel

Length: 7.6 mm

Diameter: 270 mm

Impedance: 50 Ohms

Cable Type: 30 cm Coax

Application: In-Building Systems, FirstNet/Public Safety

Cable Length: 300 mm

Polarization: Horizontal

Power Rating: 50 W

Mounting Style: Ceiling Mount

Number of Bands: 13 Band

Center Frequency: 365 MHz, 3450 MHz, 649 MHz, 752 MHz, 850 MHz, 1450 MHz, 1785 MHz, 1920 MHz, 2045 MHz, 2500 MHz, 3750 MHz, 5412 MHz

Mechanical Style: Module

Maximum Frequency: 5.925 GHz

Minimum Frequency: 350 MHz

Termination Style: Connector

Protocol - Sub GHz: Radio, UHF, IoT, ISM

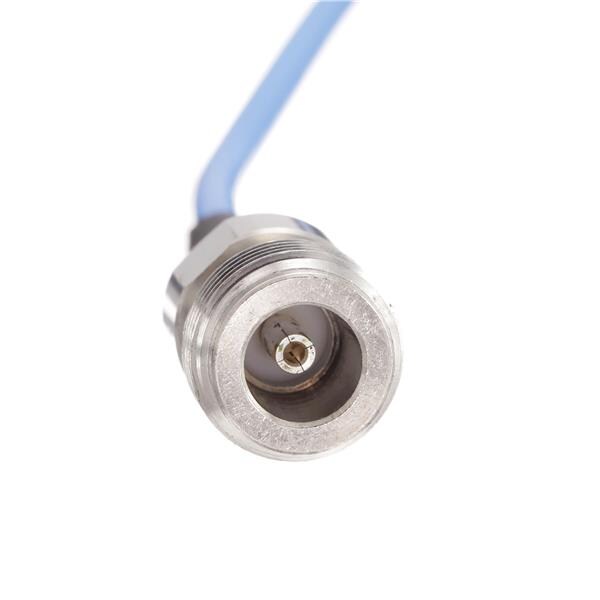

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: WiFi, WiMAX

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), CBRS, WCS, UMTS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
