LANGER EMV-Technik RF4-E set Near-Field Probes E-field (30 MHz up to 3 GHz)
Manufacturer: LANGER EMV-Technik Model: RF4-E set - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Technical parameters
Frequency range: 30 MHz ... 3 GHz
Connector: SMB, male, jack

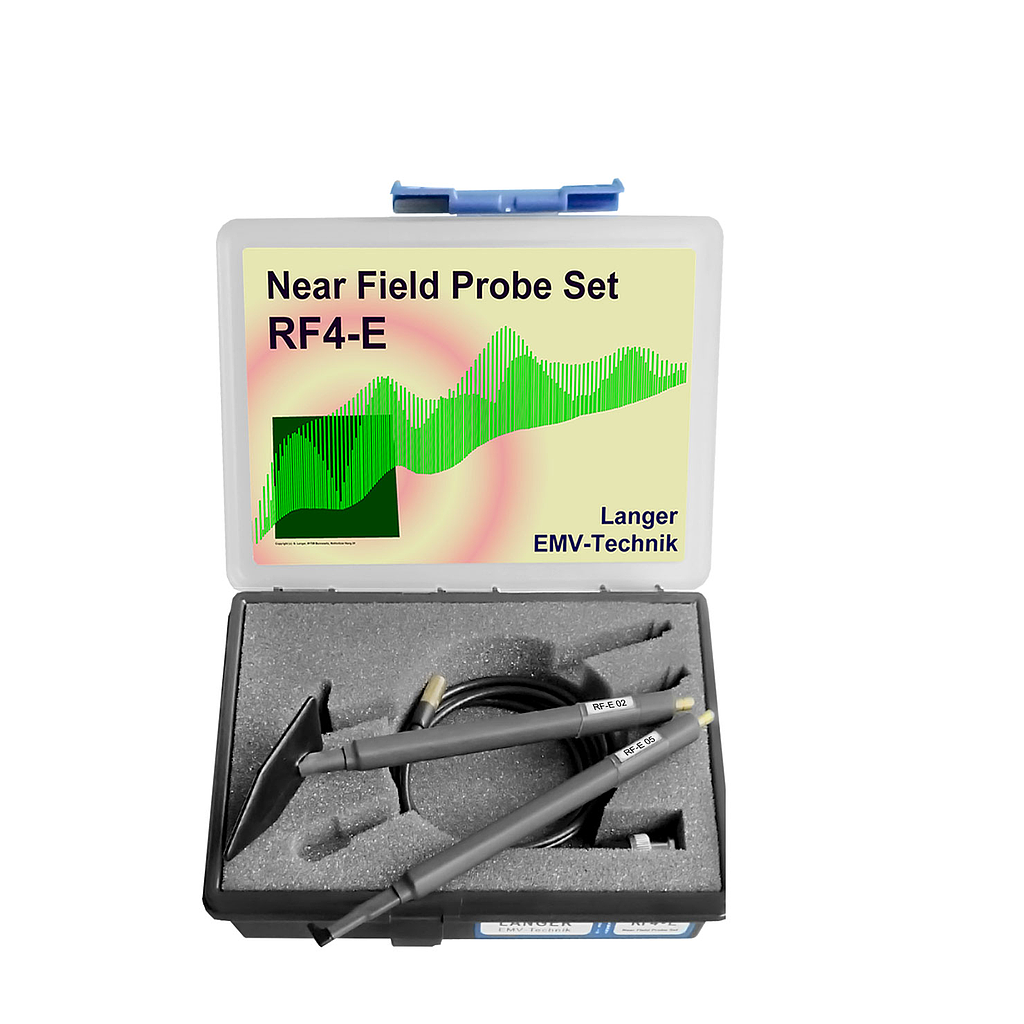

Scope of delivery
1x RF-E 02, E-Field Probe 30 MHz up to 1.5 GHz
1x RF-E 05, E-Field Probe 30 MHz up to 3 GHz
1x SMB-BNC 1 m, SMB-BNC Measurement Cable
1x Case 2, System Case Near Field Probes
Short description
The RF4-E probe set contains two passive E field probes to measure electrical fields with a frequency range from 30 MHz up to 3 GHz for comparison purposes.
The probes are designed for the analysis of E field distributions, detection of coupling mechanisms on modules and evaluation of switching edges on signal leads and RF voltages of the supply system.
The near-field probes are small and handy. They have a current attenuating sheath and, therefore, are electrically shielded. The near-field probes can be connected to a spectrum analyzer or an oscilloscope with a 50 Ω input. They do not have an internal terminating resistance.
