Direct access to our certified experts
Scope of delivery

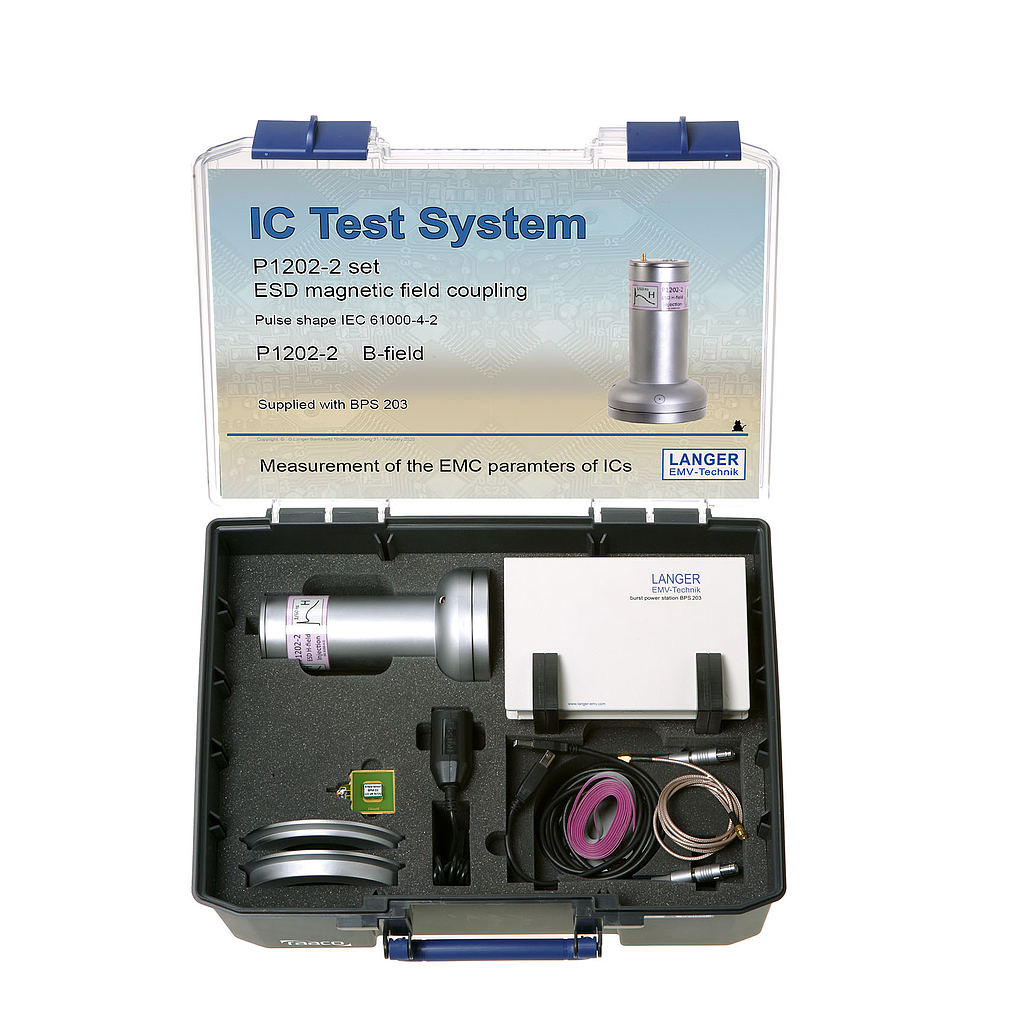

1x P1202-2, ESD Magnetic Field Source
1x BPS 203, Burst Power Station
1x BPS 203-Client, Control Software
1x BPM 02, dB/dt Field Meter
1x D70 h03, Spacer Ring, 3 mm
1x D70 h10, Spacer Ring, 10 mm
2x SMA-SMB 1 m, SMA-SMB Measuring Cable
1x USB-AB, USB Cable Type A-B
1x P1202-2 acc, Accessories
1x NT Ex EU, Power Supply Unit
1x P1202-2 case, System Case
1x BPS 203 m, BPS 203 User manual
1x P1202-2 m, P1202-2 Set User Manual
Short description
The field source, which are included in the probe set ESD/magnetic field coupling, generates magnetic ESD fields. With this field, ICs are defined and reproducibly pulsed to determine their immunity against ESD fields.
The reason for this is the ESD immunity of PC boards and electrical devices. The immunity is tested (IEC 61000-4-2). During the tests electric and magnetic fields are generated by coupled ESD interference into the PC boards. These fields affect the PC board surface and penetrate the IC casings. If fields penetrate the ICs, disturbance events will be generated. The IC interference via magnetic or electrical fields is a significant source of interference / interference path in addition to the conducted coupling of ESD interference above the ICs.
The knowledge gained about IC EMC behaviour is streamlined into the development of an assembly. Hence, expensive redesigns are avoided and development costs are reduced.
Furthermore, the use of the test methods for the determination of IC EMC parameters enables the IC producer to develop ICs more efficiently.
The test set up needs the ICE1 test system and external devices.
Datasheet
Manual
