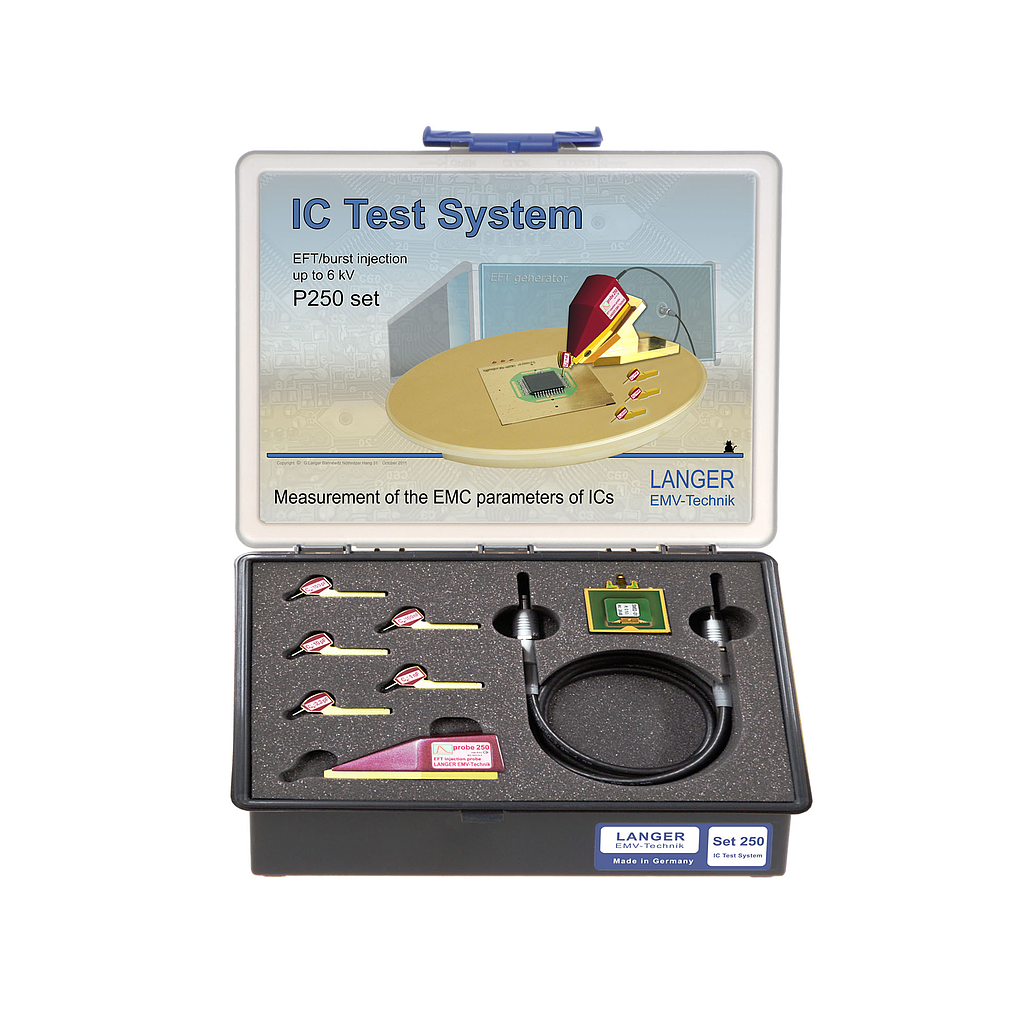

Scope of delivery
1x P250, EFT Coupling Network
1x TS 250-2.2p, Probe Tip 2.2 pF
1x TS 250-10p, Probe Tip 10 pF
1x TS 250-1n, Probe Tip 1 n
1x TS 250-100p, Probe Tip 100 pF
1x TS 250-100n, Probe Tip 100 nF
1x SM 02-01, Shunt 0,1 Ohm
1x HV FI-FI 1 m, High-Voltage Cable, Fischer-Fischer
1x P250 case, System Case
1x P250 m, P250 Set User manual
Short description
The P250 probe is used for direct-contact measurements of impulse immunity in IC pins, according to IEC 62215-3 and IEC 61000-4-4. Knowledge of impulse immunity parameters through use of the P250 probe makes optimization of the IC and definition of application requirements possible. The probe P250 has interchangeable heads, which allows for coupling capacity to be changed.
The included power cable is terminated with a Fischer-connector. Alternatively, the connecting cable can be ordered with an SHV connector instead of the Fischer connector.
