Flow range: 0.0002～49 mL/min
Speed range: 0.1～100rpm
Speed accuracy: <±0.2%
Speed resolution: 0.1 rpm
Power supply: AC100～240V ,50Hz/60Hz
Power consumption: < 30W
External control signal input:Start /Stop: passive contact, external control input level 5-24V. Reversible direction: passive contact, external control input level 5-24V. Adjust speed： analog quantity 0-5V,0-10V,4-20mA can set.
External control signal output:Start /Stop ： level signal (following input voltage). Reversible direction ： level signal (following input voltage). Speed state： analog quantity 0-5V.
Communication interface:RS485, MODBUS protocol is available,DB15 external control interface.
Temperature 0～40℃, relative humidity<80%
IP grade: IP31

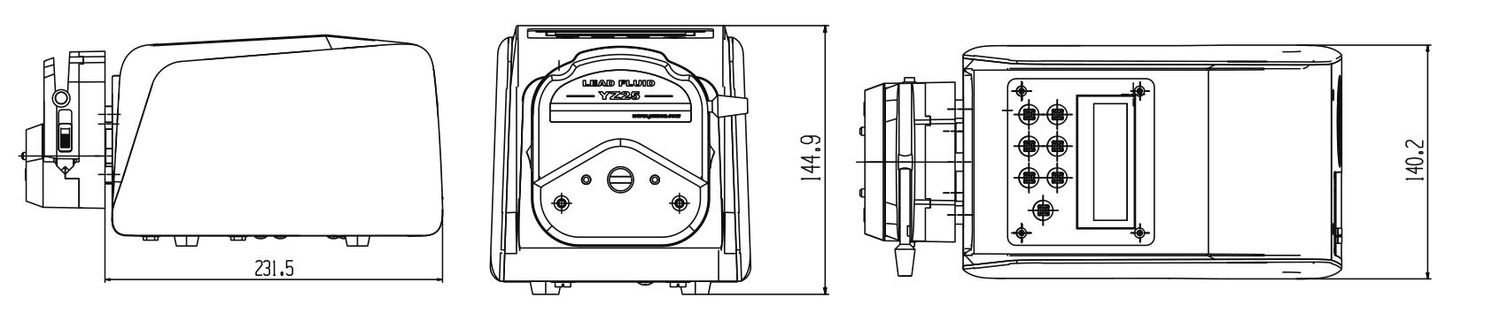

Dimension: 232x140x145mm
Drive weight: 2.9 kg

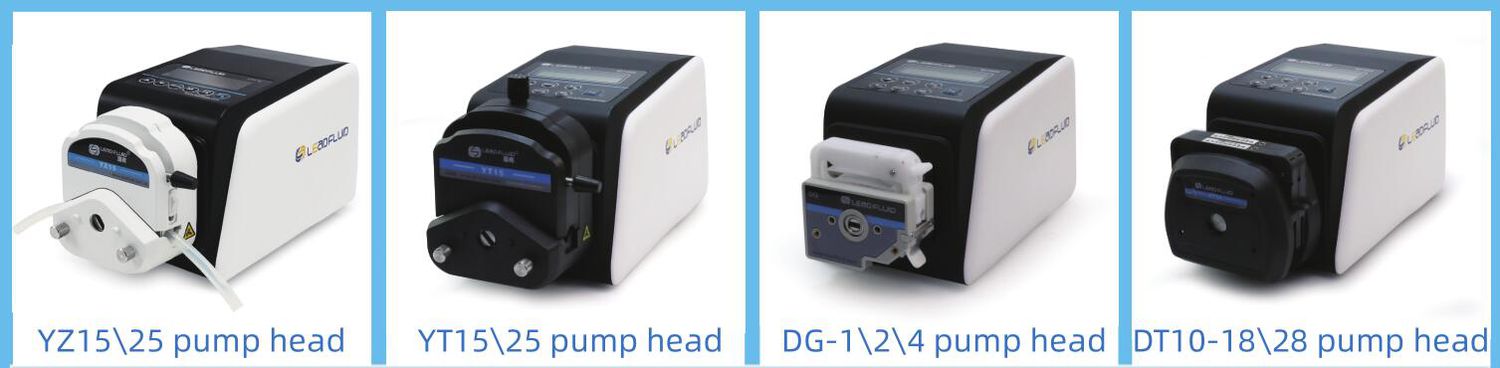

Pump Head | Channel Number | Tube | Per Channel Flow Rate（mL/min） |
DG6(6 rollers) | 1，2，4 | Wall 0.8～1mm，ID≤3.17mm | 0.0002～49 |
DG10(10 rollers) | 1，2，4 | Wall 0.8～1mm，ID≤3.17mm | 0.0001～41 |
DT10-18 | 1 | 13#14#, Wall 0.8～1mm，ID≤3.17mm | 0.0002～82 |
DT10-28 | 2 | 13#14#, Wall 0.8～1mm，ID≤3.17mm | 0.0002～82 |
YZ15 | 1 | 13#14#19#16#25#17# | 0.006～280 |
YZ25 | 1 | 15#24# | 0.16～280 |
YT15 | 1 | 13#14#19#16#25#17#18# | 0.006～380 |
YT25 | 1 | 15#24#35#36# | 0.16～480 |
Above flow parameters are obtained by using silicone tube to transfer pure water under normal temperature and pressure, in actually it is effected by specific factors such as pressure, medium, etc. Above for reference only.
