Flow range: 0.006～1300 mL/min
Speed range: 0.1-350 rpm
Speed resolution: 0.1 rpm
Speed accuracy: 0.2%
Power supply: AC 100-240V, 50Hz/60Hz
Power consumption: <50W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
Communication interface: RS485 MODBUS
Operating condition: Temperature 0~40°C; Relative humidity < 80%
IP grade: IP31
Dimensions (L x W x H): 226 x 150 x 238 mm (8.90 x 5.91 x 9.37 inch)
Weight: 5.3 kg (11.7 lbs)
| Drive type | Pump head | Ch | Tubing size (mm) | Flow rate per channel (mL/min) |

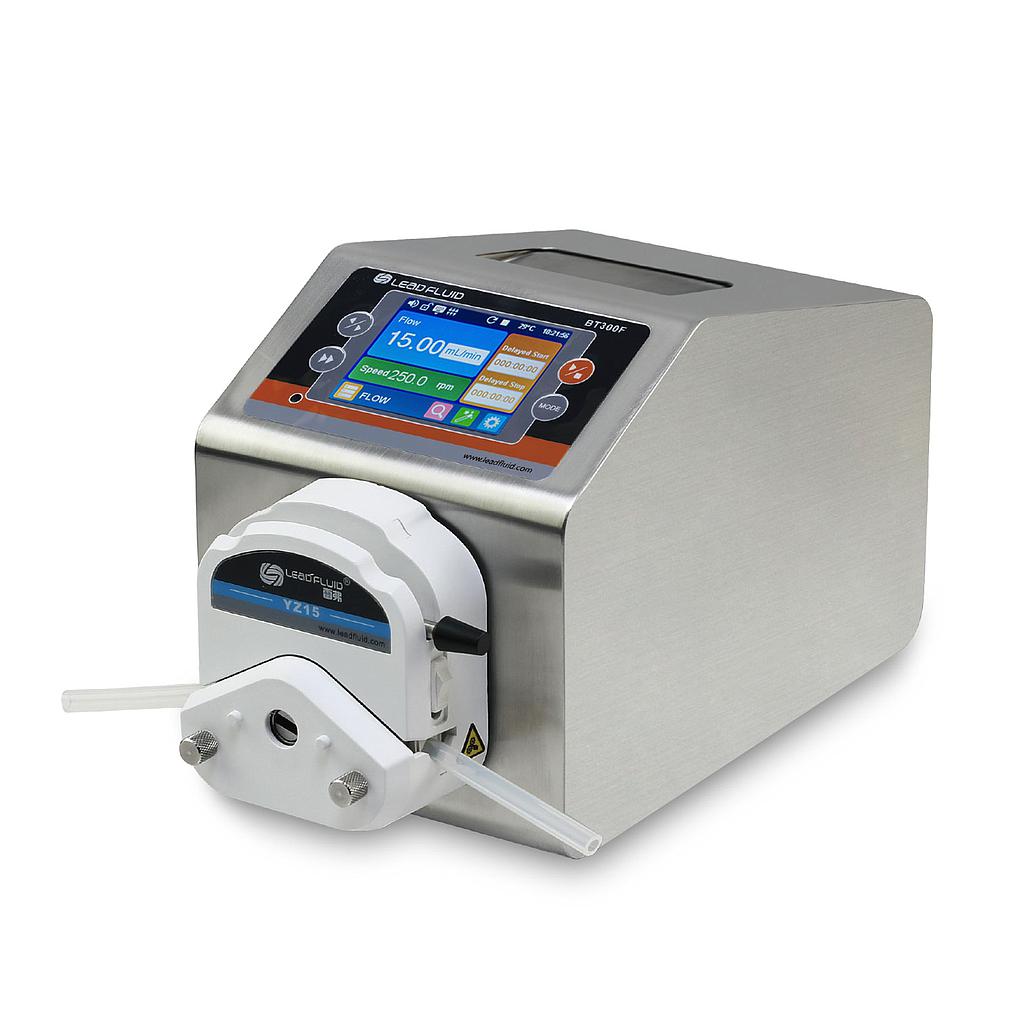

| BT300F
| YZ15 | 1, 2 | 13#14#16#19#25#17#18# | 0.006～1340 |
YZ25 | 1, 2 | 15#24# | 0.16～990 | |
DT15-14 | 1 | 19#16#25#17# | 0.07～1300 | |
DT15-24 | 2 | 19#16#25#17# | 0.07～1300 | |
DT15-44 | 4 | 19#16#25# | 0.07～770 | |
YT15 | 1, 2 | 13#14#16#19#25#17#18# | 0.006～1300 | |
YT25 | 1 | 15#24#35#36# | 0.16～1690 |
