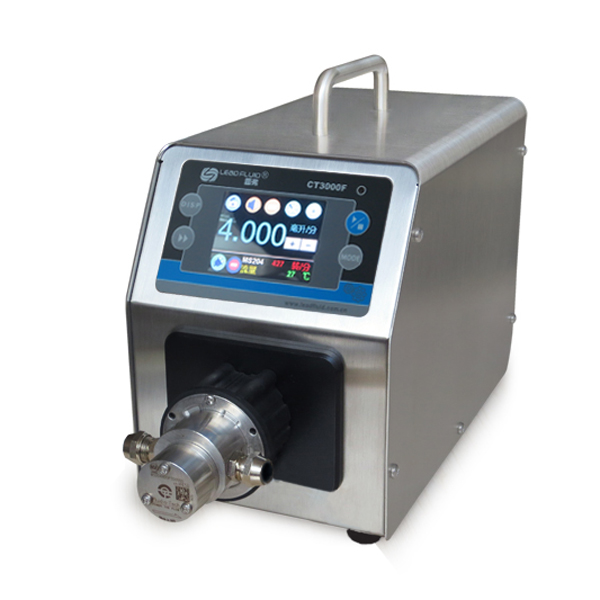

Leadfluid CT3000F Micro Gear Pump ( 15-2700 mL/min, 1CH)

Specifications

Flow range: 15-2700 mL/min

Speed range: 50-3000 rpm/min

Speed resolution: 1rpm/min,accuracy:0.5%

Time dispensing: 0.1-99.99 secpmds

Pause time: 0.1-999.9 seconds

Dispensing times: 0-999

Ajusting way: keypad and touch screen operation

Display mode: 65565 Color LCD

power supply: AC 90-264V 50Hz/60Hz

Consumption: <150W

work environment: Environment 0 -40℃ ,humidity <80%

dimension size: 342*198* 182mm

Drive weight: 5.5kg

IP standard: IP31

Details

CT 3000F suitable pump head

Pump headGear materalPressure (MPa)Flow range (mL/min)Liquid temperature℃
MS204XD0PT00000PEEK≤1.415-900-45-120
MS209XD0PT00000PEEK≤0.930-1800-45-120
MS213XD0PT00000PEEK≤0.845-2700-45-120
