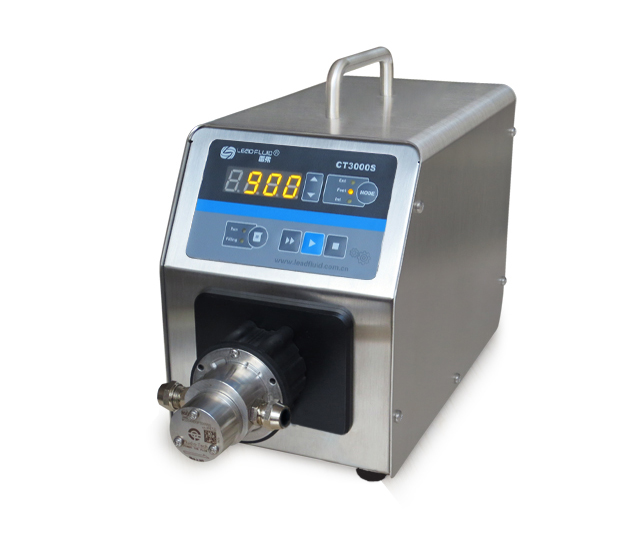

Leadfluid CT3000S Micro Gear Pump (90- 2700mL/min, 1CH)

Specifications

Flow range: 90-2700ml/min

Speed range: 300-3000rpm/min

Speed resolution: 1rpm/min,accuracy 3%

Adjusting way: Keypad

Display mdoe: 4 LED digital display

Power supply: AC 88-264V 50Hz/60Hz(standard)

consumption: <150W

Working envronment: Environment 0~ 40℃   humidity <80%

Dimension size: 320X150X 237 mm

Drive weight: 5.5kg

IP standard: IP31

Details
Pump headGear materal  Pressure (MPa)Flow range

(MPa)

Liquid temperature℃
MS204XD0PT00000PEEK≤1.490-900-45-120
MS209XD0PT00000PEEK≤0.9180-1800-45-120
MS213XD0PT00000PEEK≤0.8270-2700-45-120
