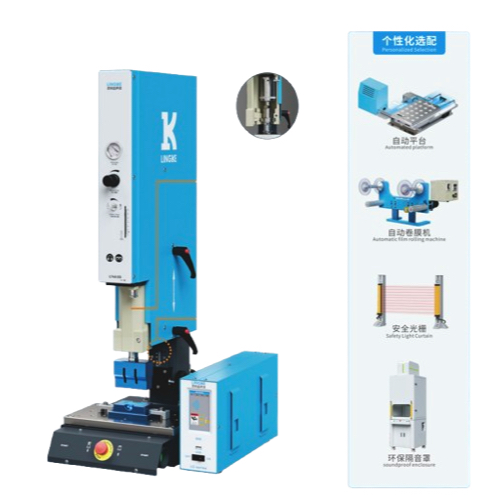

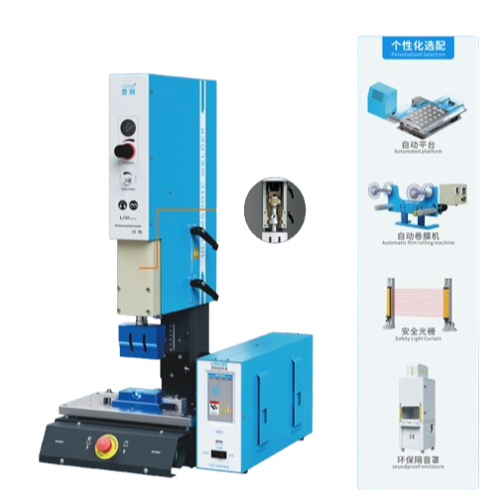

Lingke L745 Standard Intelligent Digitalization Type Ultrasonic Welder (40kHz / 35kHz / 30kHz / 28kHz; 1200W)

Name: Lingke L745 Standard Intelligent Digitalization Type Ultrasonic Welder (40kHz / 35kHz / 30kHz / 28kHz; 1200W)
Brand: Lingke

ModelL745 Standard

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Frequency: 40kHz / 35kHz / 30kHz / 28kHz

Power: 1200W

Input Voltage: AC220V

Cylinder Size (mm): 40 × 60

Machine Journey: 210mm

Output Time: 0.01-9.99s

Air Pressure: >1, ≤7bar

Welding Capability: Φ40mm

Operation Switch: Two-hand release, emergency stop button at the front, and adding external control switch supported.

Dimension (Press): 490 × 315 × 950 mm

Dimension (Digitalization Generator): 430 × 230 × 108 mm

Net Weight (Press): 45kg

Net Weight (Digitalization Generator): 6.5kg

Heightened Pillar (Optional): 150mm / 200mm height options available.
