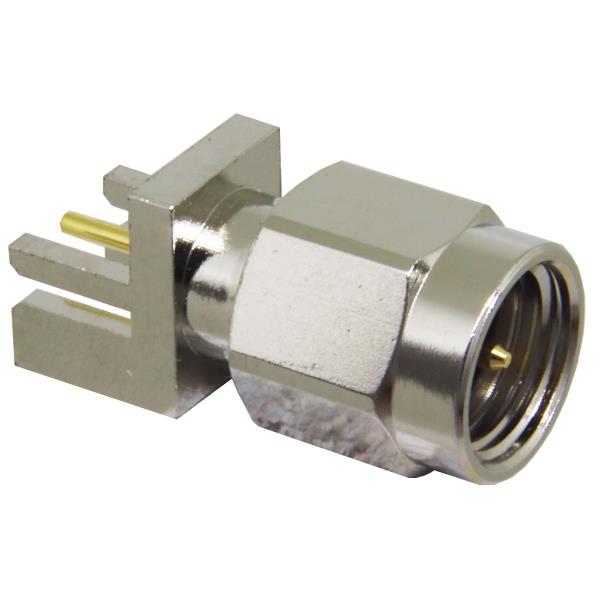

Linx Technologies - TE Connectivity CONSMA013.031 Connectors SMA Mal Edge Mnt for .031" Thick Brds
Manufacturer: Linx Technologies - TE Connectivity Model: CONSMA013.031 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Gender: Plug (Pin)
Polarity: Standard
Impedance: 50 Ohms
RF Series: SMA
Body Style: Straight
Body Finish: Nickel
Orientation: Straight
Unit Weight: 3.605 g
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500 Min
Insertion Loss: 0.04 dB max
Mounting Style: Edge Launch
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 12.4 GHz
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
