Gain: 3.1 dBi, 4.4 dBi, 4.8 dBi, 6.1 dBi, 5.7 dBi, 8.0 dBi, 5.6 dBi, 4.4 dBi, 5.8 dBi, 7.2 dBi
VSWR: 1.9, 2.2, 2.0, 4.8, 1.9, 2.4, 2.4, 2.0, 2.2, 2.2

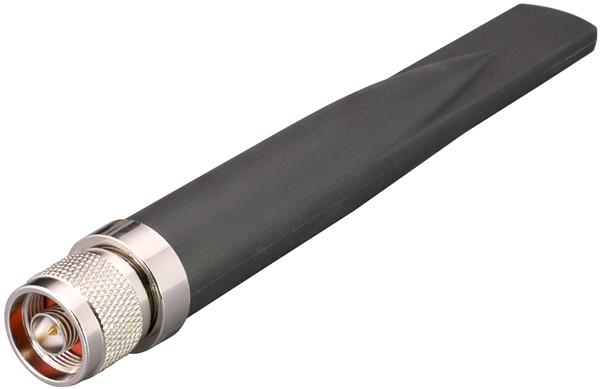

Style: Whip
Width: 21 mm
Length: 176 mm
IP Rating: IP67
Impedance: 50 Ohms
Wavelength: 1/2 Wave
Application: 5G, LTE, LTE-M (Cat-M1), NB-IoT
Polarization: Linear
Power Rating: 2 W
REACH - SVHC: Details
Mounting Style: Connector
Electrical Type: Dipole
Frequency Range: 617 MHz to 698 MHz, 698 MHz to 803 MHz, 791 MHz to 960 MHz, 1710 MHz to 2200 MHz, 2300 MHz to 2400 MHz, 2496 MHz to 2690 MHz, 3300 MHz to 3800 MHz, 3550 MHz to 3700 MHz , 3700 MHz to 4200 MHz, 4400MHz to 5000 MHz
Number of Bands: 10 Band
Center Frequency: 600 MHz, 700 MHz, 800 MHz, 850 MHz, 900 MHz, 1.7 GHz, 1.8 GHz, 1.9 GHz, 2.1 GHz, 2.3 GHz, 2.5 GHz, 3.3 GHz, 3.5 GHz, 3.7 GHz, 4.9 GHz
Mechanical Style: Whip
Ground Plane Size: 300 mm x 300 mm
Termination Style: N Type Male
Antenna Connector Type: N Type Male
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
