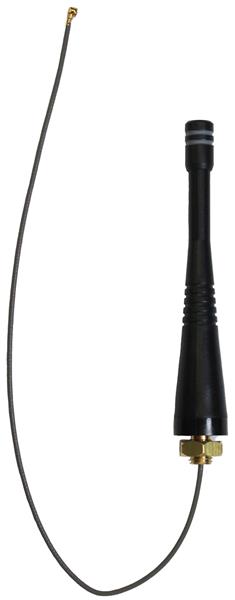

Linx Technologies - TE Connectivity ANT-868-PW-QW-UFL Passive Antenna 868MHz 1/4 Wave Whip Permanent Mount, UFL

Gain: 1.6 dBi

VSWR: 1.9

Style: Straight

Length: 83.5 mm

Diameter: 14.5 mm

Bandwidth: 200 MHz

Impedance: 50 Ohms

Cable Type: 216 mm RF1.32

Wavelength: 1/4 Wave

Application: FirstNet/Public Safety, Sensing, Remote Monitoring, Handheld Devices

Unit Weight: 22.236 g

Cable Length: 216 mm

Polarization: Linear

Mounting Style: Direct / Permanent Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 868 MHz

Mechanical Style: Whip

Ground Plane Size: 102 mm x 102 mm

Maximum Frequency: 950 MHz

Minimum Frequency: 750 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID

Antenna Connector Type: MHF / U.FL

Protocol - WiFi - 802.11: LoRaWAN, Sigfox

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
