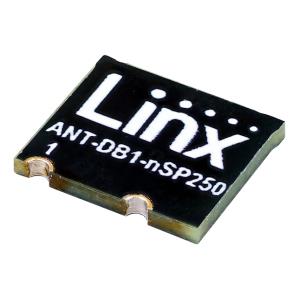

Linx Technologies - TE Connectivity ANT-DB1-nSP250-T Passive Antenna 2.4GHz, 5.8GHz, WiFi BT,ZigBee,WLAN,U-NII

Gain: - 1.6 dBi, - 1.8 dBi, - 1.9 dBi

VSWR: 2.0:1, 2.2:1, 2.4:1

Style: Multilayer

Width: 8.4 mm

Height: 1.1 mm

Length: 9.6 mm

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: Single Band, Dual Band, ISM Applications, IoT Devices, Smart Home Networking, Sensing, Remote Monitoring, U-NII

Polarization: Linear

Power Rating: 5 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 3 Band

Center Frequency: 2.45 GHz, 5.4 GHz, 5.8 GHz

Mechanical Style: Chip

Ground Plane Size: 40 mm x 20 mm

Maximum Frequency: 5.875 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: IoT, ISM

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 130 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 5G, Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
