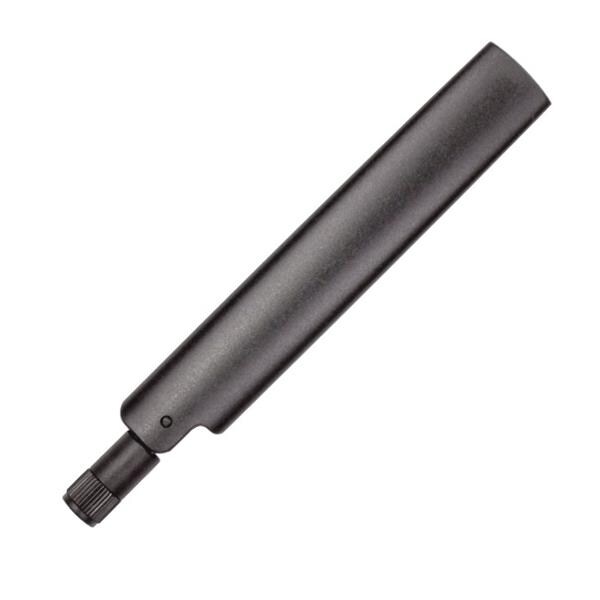

Linx Technologies - TE Connectivity ANT-LTE-WS-SMA Passive Antenna LTE Blade Dipole Swivel Antenna SMA

Gain: - 0.45 dBi, - 1.27 dBi, - 1.37 dBi, - 1.78 dBi

VSWR: 2.0:1, 2.5:1

Style: Blade Tilt / Swivel

Length: 136.3 mm

Diameter: 20 mm

Bandwidth: 262 MHz, 460 MHz, 100 MHz, 200 MHz

Impedance: 50 Ohms

Application: Worldwide Cellular, Low Power Wide Area, ISM Applications, FirstNet Public Safety, IoT Devices, Gateways

Unit Weight: 16.535 g

Polarization: Linear

Power Rating: 5 W

Mounting Style: Panel Mount

Electrical Type: Dipole

Number of Bands: 4 Band

Center Frequency: 829 MHz, 1.94 GHz, 2.35 GHz, 2.6 GHz

Mechanical Style: Whip

Maximum Frequency: 2.7 GHz

Minimum Frequency: 698 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID, IoT, ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi, WLAN, WiMAX

Maximum Operating Temperature: + 65 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, CBRS, DCS, PCS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
